DESSF-08GD07SWADBF

DESSF-08GD07SWADBF

InnoDisk
SKU: 09241800

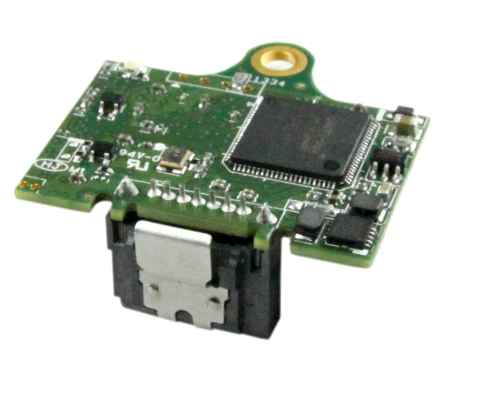

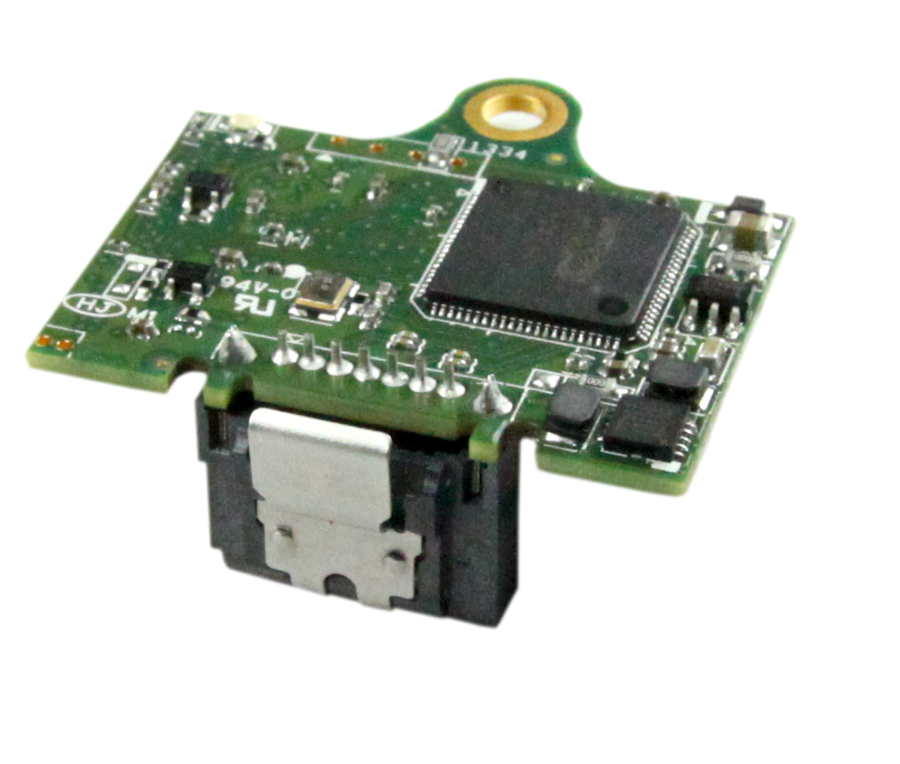

Innodisk 08GB SATADOM-SH Type D 3SE with Pin7 VCC, SLC, read/write 250/60Mpbs, -40...+85C
Price on request
Available
Available

Flash Disk
Type
Disk On Module
Connector / Socket
7-pin SATA
Construction
Open Frame
Interface
SATA 3
Type flash memory
SLC
Capacity
8 GB
Transfer Rate Maximum Read
250 MB/s
Transfer Rate Maximum Write
60 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
370 mA
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
5-95%
Vibration
20G @7~2000Hz
Shock
1500G @ 0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg
Flash Disk
Type
Disk On Module
Connector / Socket
7-pin SATA
Construction
Open Frame
Interface
SATA 3
Type flash memory
SLC
Capacity
8 GB
Transfer Rate Maximum Read
250 MB/s
Transfer Rate Maximum Write
60 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
370 mA
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
5-95%
Vibration
20G @7~2000Hz
Shock
1500G @ 0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg
Flash Disk
Type
Disk On Module
Connector / Socket
7-pin SATA
Construction
Open Frame
Interface
SATA 3
Type flash memory
SLC
Capacity
8 GB
Transfer Rate Maximum Read
250 MB/s
Transfer Rate Maximum Write
60 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
370 mA
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
5-95%
Vibration
20G @7~2000Hz
Shock
1500G @ 0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg
Flash Disk
Type
Disk On Module
Connector / Socket
7-pin SATA
Construction
Open Frame
Interface
SATA 3
Type flash memory
SLC
Capacity
8 GB
Transfer Rate Maximum Read
250 MB/s
Transfer Rate Maximum Write
60 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
370 mA
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
5-95%
Vibration
20G @7~2000Hz
Shock
1500G @ 0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg

Documentation
Innodisk_SATADOM-SH_type_D_3SE_Datasheet___5222954.pdf
Documentation
Innodisk_SATADOM-SH_type_D_3SE_Datasheet___5222954.pdf
Documentation
Innodisk_SATADOM-SH_type_D_3SE_Datasheet___5222954.pdf
Documentation
Innodisk_SATADOM-SH_type_D_3SE_Datasheet___5222954.pdf
