DESML-64GD06SCBQB

InnoDisk
SKU: 09457100

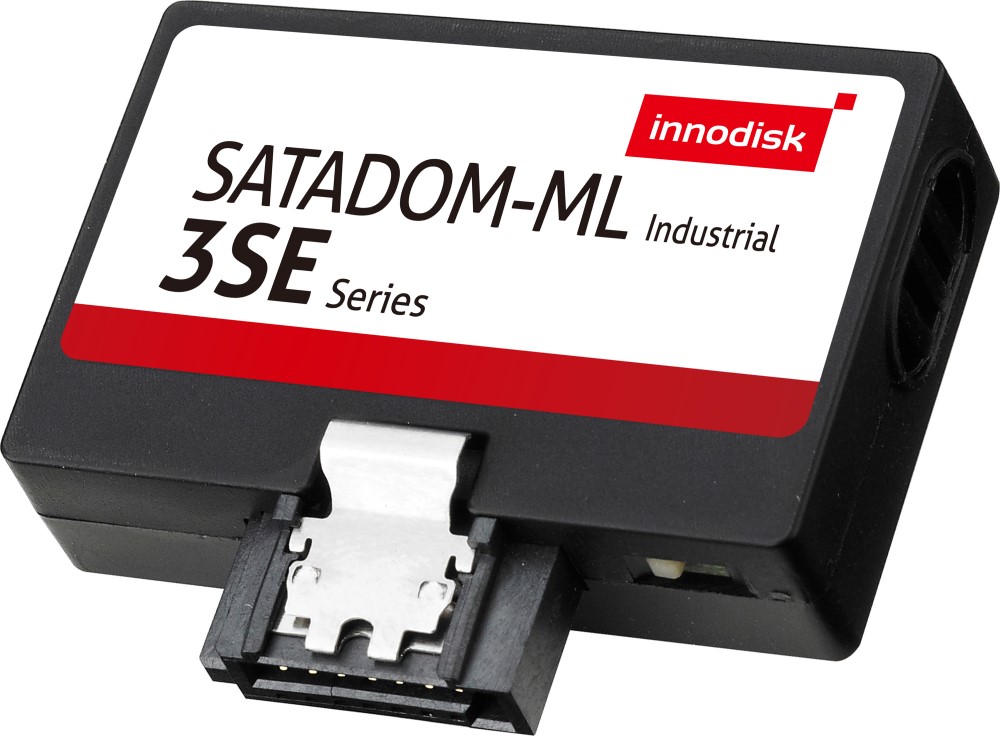

64GB SATADOM-ML 3SE with Pin7 VCC Supported,Temperature 0..+70 C
Price on request
Available
Available

Flash Disk
Type
Disk On Module
Connector / Socket
7-pin SATA
Construction
Build in Chassis
Interface
SATA 3
Type flash memory
SLC
Capacity
64 GB
Transfer Rate Maximum Read
490 MB/s
Transfer Rate Maximum Write
250 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
400 mA
Operating Conditions
Operating Temperature
0..70 °C
Humidity
5-95%
Vibration
20G @7~2000Hz
Shock
1500G @ 0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg
Flash Disk
Type
Disk On Module
Connector / Socket
7-pin SATA
Construction
Build in Chassis
Interface
SATA 3
Type flash memory
SLC
Capacity
64 GB
Transfer Rate Maximum Read
490 MB/s
Transfer Rate Maximum Write
250 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
400 mA
Operating Conditions
Operating Temperature
0..70 °C
Humidity
5-95%
Vibration
20G @7~2000Hz
Shock
1500G @ 0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg
Flash Disk
Type
Disk On Module
Connector / Socket
7-pin SATA
Construction
Build in Chassis
Interface
SATA 3
Type flash memory
SLC
Capacity
64 GB
Transfer Rate Maximum Read
490 MB/s
Transfer Rate Maximum Write
250 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
400 mA
Operating Conditions
Operating Temperature
0..70 °C
Humidity
5-95%
Vibration
20G @7~2000Hz
Shock
1500G @ 0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg
Flash Disk
Type
Disk On Module
Connector / Socket
7-pin SATA
Construction
Build in Chassis
Interface
SATA 3
Type flash memory
SLC
Capacity
64 GB
Transfer Rate Maximum Read
490 MB/s
Transfer Rate Maximum Write
250 MB/s
System Power Input
Input Voltage DC
5..5 V
Current
400 mA
Operating Conditions
Operating Temperature
0..70 °C
Humidity
5-95%
Vibration
20G @7~2000Hz
Shock
1500G @ 0.5ms
MTBF
3000000 h
Dimensions
Net Weight
0.01 kg
Gross Weight
0.01 kg

Documentation
Innodisk_SATADOM-ML_3SE_Datasheet___3320192.pdf
Documentation
Innodisk_SATADOM-ML_3SE_Datasheet___3320192.pdf
Documentation
Innodisk_SATADOM-ML_3SE_Datasheet___3320192.pdf
Documentation
Innodisk_SATADOM-ML_3SE_Datasheet___3320192.pdf
