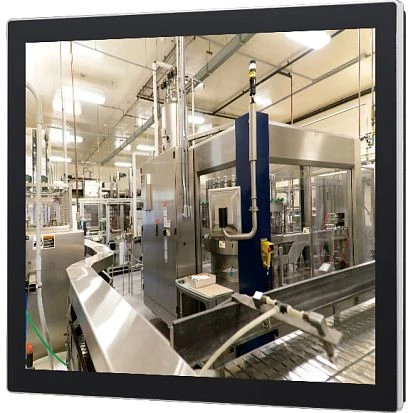

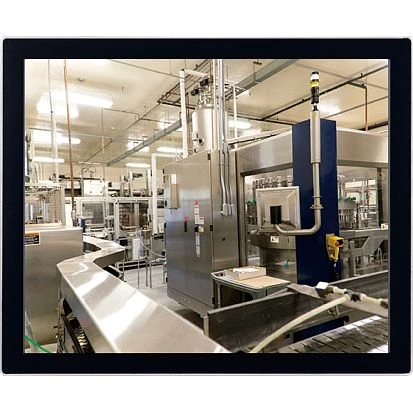

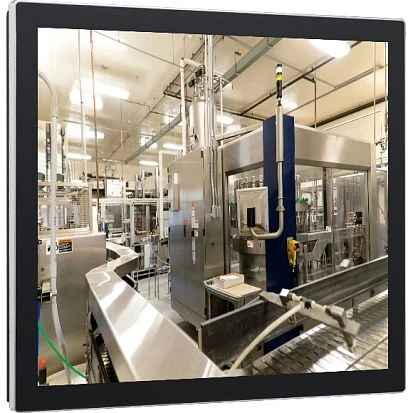

APPC-1940C-B01
NEXCOM
SKU: 10657400
19" TFT LCD Panel PC, Resistive Touch Screen, Intel Celeron J1900 2.0GHz, 4GB DDR3L, 1x2.5" SATA bay, CFast, VGA, 2xGbit LAN, 2xCOM, 3xUSB, 2xMini PCIe, Power Input 12V..30V DC
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
FCBGA1170
Max CPU frequency
2.42 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
3
USB 2.0
2
USB v3.x
1
Audio
Audio Controller
Realtek ALC888S
Drive interfaces
SATA 3
1
CFast Slots
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Antenna characteristics
Cellular interfaces
3G (Optional)
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
2xDB9, DB15 VGA, 2xRJ45 Ethernet, 3xUSB, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
12..30 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows CE 7.0, Windows 10
Dimensions and weight
Width
425.4 mm
Height
350 mm
Depth
63.1 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Vibration
IEC 68 2-64 (w/ HDD); 1Grms @ sine, 5~500Hz, 1hr/axis (HDD Operating); 2Grms @ sine, 5~500Hz, 1hr/axis (CFast Operating); 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)
Shock
IEC 68 2-27; HDD: 20G@wall mount, half sine, 11ms
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
6.2 kg
Gross Weight
8.3 kg
