APPC-1740T
NEXCOM
SKU: 06572600

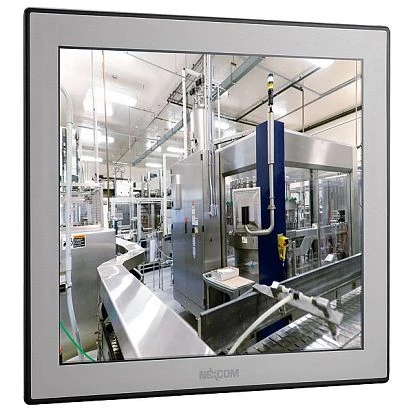

17" TFT LCD Panel PC, Resistive Touch Screen, Intel Celeron J1900 2.0GHz, 4GB DDR3L, 1x2.5" SATA HDD, CFast, VGA, 2xGbit LAN, 2xCOM, 3xUSB, 2xMini PCIe, Audio, Power Input 12V~30V DC
End-of-life product
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
3
USB 2.0
2
USB v3.x
1
Digital Input-Output
Channels of DIO
4
Audio
Audio Controller
Realtek ALC886-GR
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Antenna characteristics
Cellular interfaces
3G
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset
Connectors
Connectors

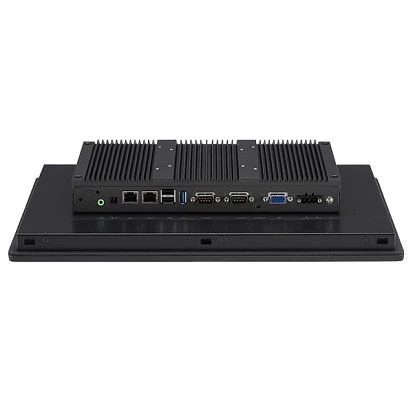

2xDB9, DB15 VGA, PS/2 Keyboard/Mouse, 2xRJ45, 3xUSB, Line Out, 4xDIO, DC input (terminal block)
System Power Input
Input Voltage DC
12..30 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Dimensions and weight
Width
410.4 mm
Height
340.4 mm
Depth
65.9 mm
Operating Conditions
Operating Temperature
-5..60 °C
Vibration
IEC 68 2-64 (w/ HDD); 1Grms @ sine, 5~500Hz, 1hr/axis (HDD Operating); 2Grms @ sine, 5~500Hz, 1hr/axis (CFast Operating); 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)
Shock
IEC 68 2-27; HDD: 20G@wall mount, half sine, 11ms
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
6.7 kg
Gross Weight
7.3 kg
