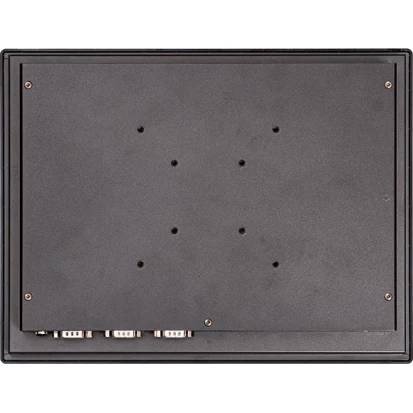

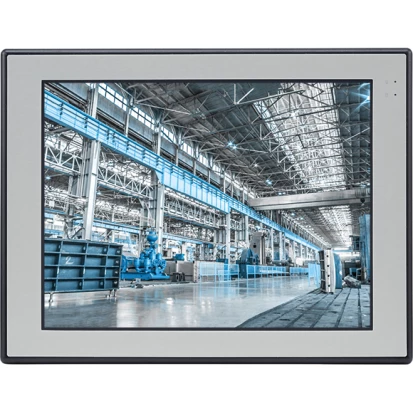

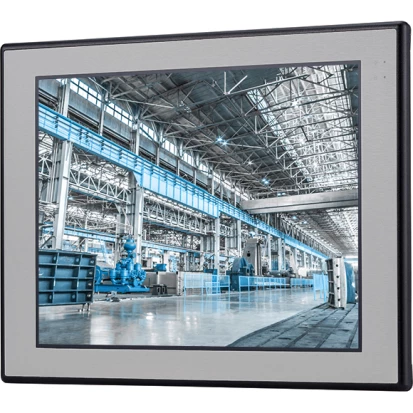

APPC-1260T-A01
NEXCOM
SKU: 57943000
12.1" Fanless Panel PC APPC1260T, IP65 Front, 1024x768, Resistive Touch, 500cd/m, Intel Alder Lake N97 CPU, 8GB DDR5 RAM, DP, 2x2.5GbE LAN, 3xCOM, 2xUSB 3.2, 1xUSB 3.2 Type-C, Audio, 1xMini-PCIe, 1xM.2 2242 Key-B, 1xM.2 3052/3042 Key-B, 24VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 50
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
500 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N97
Socket
CPU onboard
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i226-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
1
RS-232/422/485
2
USB Total
3
USB v3.x
3
Drive interfaces
M.2
1
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2242 M, 3052 B, 3042 B
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
3xDB9, 2xRJ45 Ethernet, 2xUSB, Display Port, DC input (terminal block), USB type C
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
317 mm
Height
243 mm
Depth
62.5 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
10-90%
Vibration
- 2G@sine, 5-500Hz, 1hr/axis (M.2 operating), IEC60068-2-64 - 2G@random condition, 5-500Hz, 1hr/axis (Non-operating) - IEC60068-2-64
Shock
- 20G@wall mount, half sine, 11ms, IEC60068-2-27s
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.7 kg
Gross Weight
5 kg
