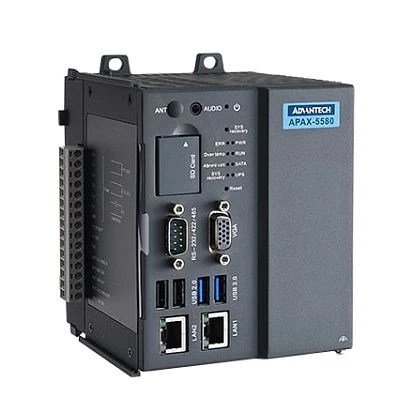

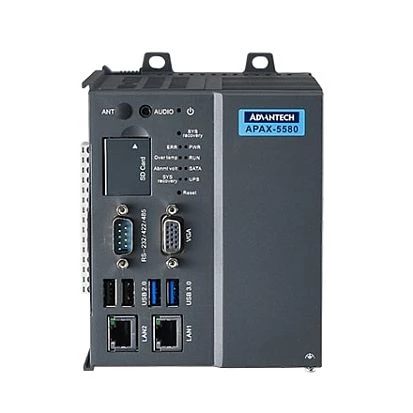

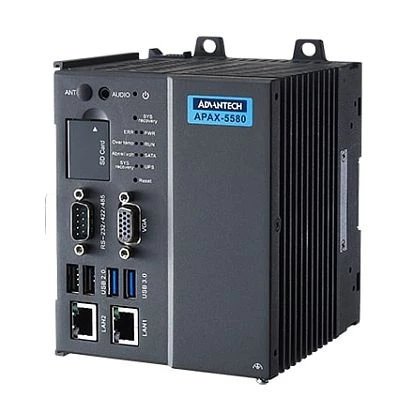

APAX-5580-474AE
Advantech
SKU: 08797100
CIRCUIT MODULE, Intel Core i7-4650U 1.7GHz with 8GB memory, no external expansion slot
Price on request
Available
Available
Construction
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
Intel Core i7-4650U
Max CPU frequency
3.3 GHz
Memory
Default on Board Memory
8 GB
Drive interfaces
SD Slots
1
Software
Programming Method
IEC 61131-3
Development Software
CoDeSys
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
5
Additional Functions
Watchdog timer type
Software
Supported Protocols
Industrial Protocols
EtherCAT master, EtherNet/IP scanner, PROFINET master, Modbus TCP client, Modbus RTU master, CANopen master
Dimensions and weight
Width
117 mm
Depth
106 mm
Height
148.5 mm
System Power Input
Input Voltage DC
24..24 V
Power Supply Reserve input Voltage DC
24..24 V
Redundant power input
Yes
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE, FCC
Safety
UL
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
2.42 kg
Gross Weight
2.92 kg
