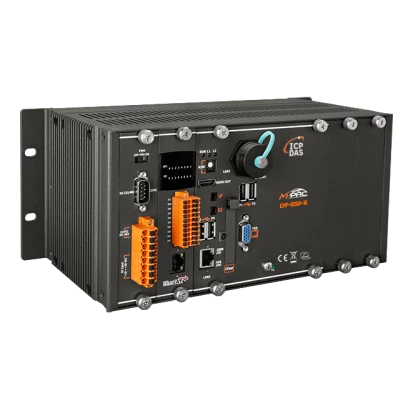

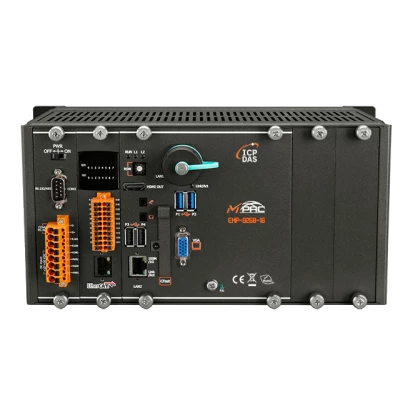

EMP-9658-16
ICP DAS
SKU: 80085100
SoftPLC based Motion Controller Series, Intel Core i5-8365UE, 16GB DDR4 SDRAM, 64GB SSD, 32GB CF, VGA, HDMI, 2x10/100/1000Base-TX, 2xCOM, 4xUSB 2.0, 8xDI, 8xDO, 1xEtherCAT RJ-45, 10..30VDC-in, 6 expansion slots, Operating Temperature -25..60 C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
Intel Core i5-8365UE
Max CPU frequency
4.1 GHz
Memory
Default on Board Memory
16 GB
Installed drive
EEPROM Memory Capacity
16 kB
MRAM Memory Capacity
128 kB
Drive Type
SSD
1st Storage Capacity
64 GB
Drive interfaces
CFast Slots
1
Software
Operating System Installed
Windows IoT Enterprise 10
Programming Method
C/C++, C#
Development Software
LabVIEW, Visual Studio .NET, VC, VB
Digital Input
Total channels of digital input
8
Isolation of Digital Input
3000 V
Type
Wet contact
Sink/Source
Wet: Sink/Source
Level of Logic "0"
0~11 V
Level of Logic "1"
19~24 V
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Sink
Max. load current
1000 mA
Output voltage
0~24 V
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Industrial Interfaces
EtherCAT Port
1
Interfaces
COM Total
2
RS-485
1
RS-232/485
1
USB Total
4
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
EtherCAT master, Modbus TCP, Modbus RTU, OPC UA server
Graphic
Interfaces
HDMI, VGA
Dimensions and weight
Width
239 mm
Depth
133 mm
Height
164 mm
System Power Input
Input Voltage DC
10..30 V
Power Supply Reserve input Voltage DC
10..30 V
Redundant power input
Yes
Operating Conditions
Operating Temperature
-25..60 °C
Humidity
10-90%
Dimensions
Net Weight
1 kg
Gross Weight
1 kg
