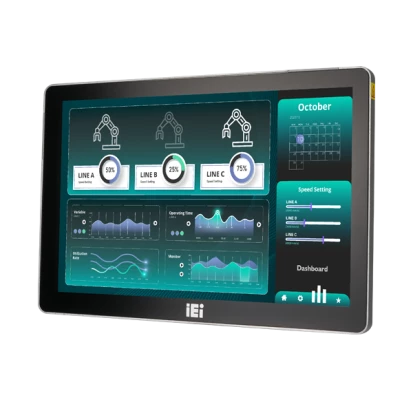

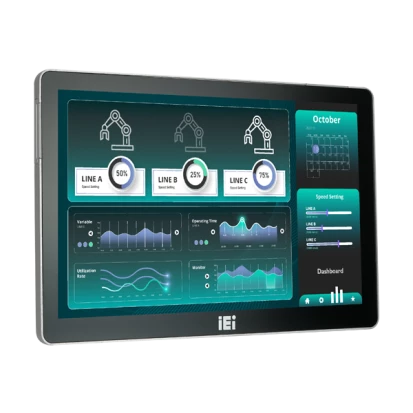

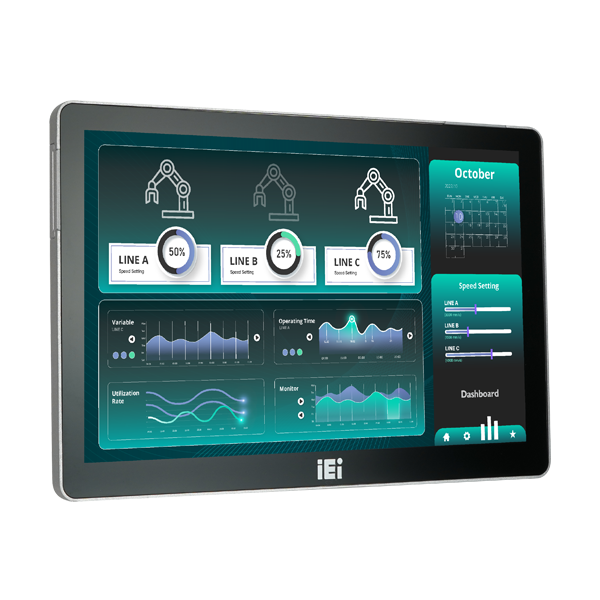

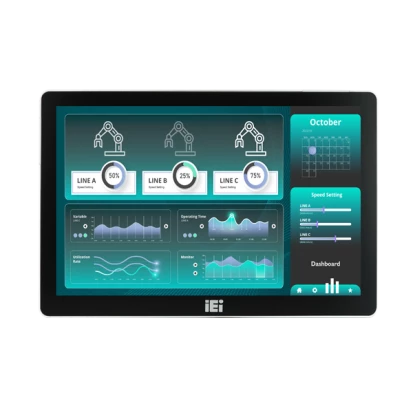

AFL4-W10-EHL-J1/8G

AFL4-W10-EHL-J1/8G

IEI
SKU: 09939200
10.1" 400 cd/m2 1280x800 (16:10) Fanless IP65 Panel PC with PCAP Touch, Intel Celeron J6412 (10W) 2.0GHz, 8GB LPDDR4 onboard, HDMI, 2x 2.5GbE LAN, 4xCOM, 2xUSB 3.2, 2xUSB 2.0, WiFi+BT5.2, M.2 2230, 2242, Audio, 12VDC-In
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall, Wall VESA 100, Wall VESA 75, Arm
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Aspect Ratio
16:10
Brightness
350 Cd/m2
Contrast Ratio
900~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
CPU onboard
Max CPU frequency
2.6 GHz
Memory
Form-factor
DDR4
Socket Type
Soldered
Default on Board Memory
8 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Ethernet
Controller Type
Intel i225V
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax)
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
5
USB 2.0
3
USB v3.x
3
Audio
Audio Controller
Realtek ALC888
Drive interfaces
M.2
2
Extension Slots
Total
1
M.2
1
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset, AT/ATX Switch
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 5xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise
Dimensions and weight
Width
243.56 mm
Height
166.2 mm
Depth
40.65 mm
Operating Conditions
Operating Temperature
-10..50 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.8 kg
Gross Weight
2.44 kg
