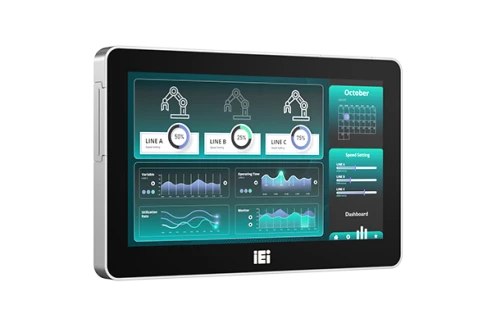

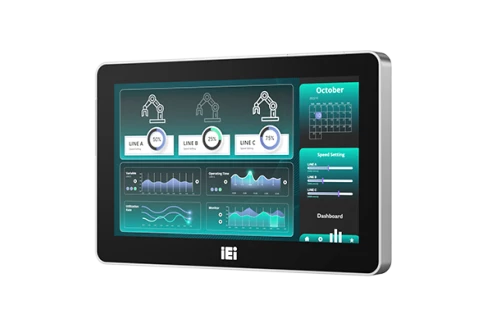

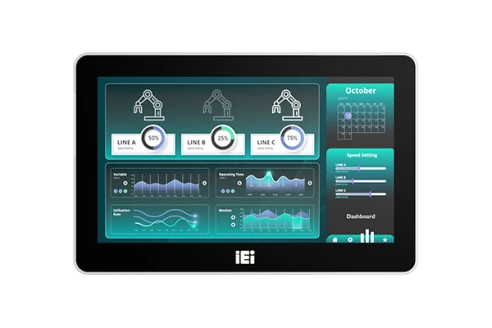

AFL4-W07-RK3566-A

AFL4-W07-RK3566-A

IEI
SKU: 11304500
7" 1024x600 (16:10) Fanless Panel PC with PCAP Touch, Rockchip RK3566, 4GB LPDDR4, 32GB eMMC, HDMI, 1xGbE LAN, 2xCOM, 1xUSB 3.2, 1xUSB 2.0, M.2 Key B 3042, Android 12, 12VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 75, Arm
Type
Fanless
Display
Display Type
LCD
Diagonal
7 "
Maximum resolution
1024x600 Dots
Aspect Ratio
16:9
Brightness
450 Cd/m2
Contrast Ratio
800~1
Input Interface
HDMI
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Rockchip RK3566
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR4
Socket Type
Soldered
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
USB 2.0
1
USB v3.x
1
Drive interfaces
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Extension Slots
M.2
1
SIM Card slots
Nano SIM
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors

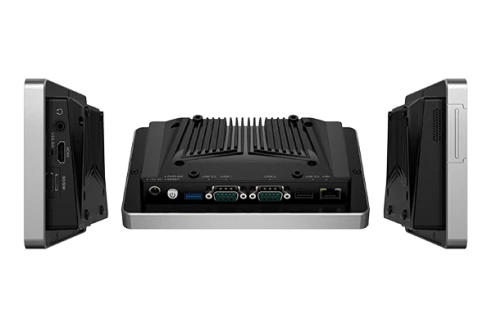

2xDB9, HDMI, RJ45, 2xUSB, Mic In, Line Out, SIM Card Slot, MicroSD card slot
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Android
Operating System Installed
Android
Dimensions and weight
Width
180 mm
Height
116 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Dimensions
Net Weight
0.8 kg
Gross Weight
2.44 kg
