AFL4-12-EHL-J1/8G

AFL4-12-EHL-J1/8G

IEI
SKU: 09939500

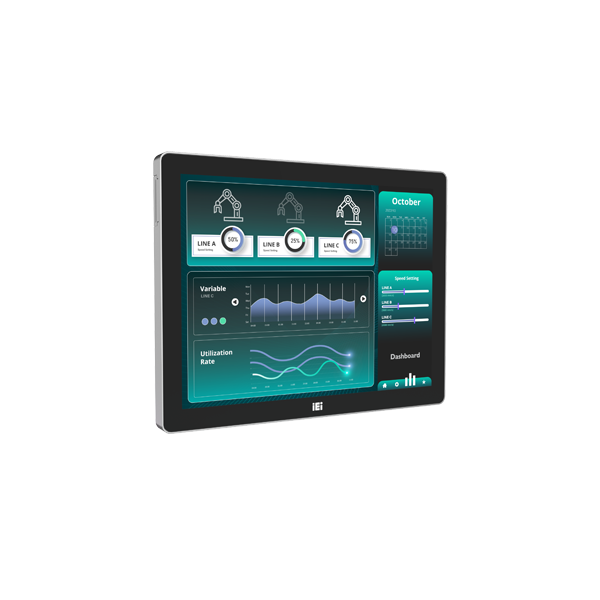

12.1" Fanless Panel PC, IP64 Front, 1024x768, 500cd/m2, PCAP Touch, Intel Celeron J6412 2.0GHz CPU, 8GB LPDDR4x RAM, HDMI, 2x2.5GbE LAN, 4xCOM, 2xUSB 3.2, 3xUSB 2.0, WiFi/BT, 2xM.2 Key-M, Audio, 12VDC-In
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall, Wall VESA 100, Wall VESA 75, Arm
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Diagonal
12 "
Aspect Ratio
4:3
Brightness
500 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
CPU onboard
Memory
Socket Type
Soldered
Default on Board Memory
8 GB
Assembly
Fixed on Board
Ethernet
Controller Type
Intel i225V
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax)
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB 2.0
3
Audio
Audio Controller
Realtek ALC888
Drive interfaces
M.2
1
Extension Slots
Total
1
M.2
1
LED / Controls
Controls
On/Off, 1xReset, AT/ATX Switch
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 5xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise
Dimensions and weight
Width
280.36 mm
Height
220.82 mm
Depth
47.5 mm
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
2.14 kg
Gross Weight
