AFL3-W10A-BT-J1/PC/2G

AFL3-W10A-BT-J1/PC/2G

IEI
SKU: 08093200

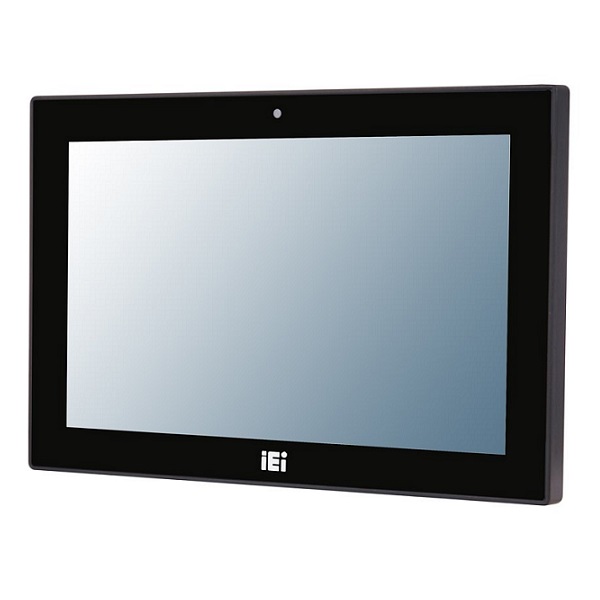

10.1" 300cd/m2 fanless panel PC front bezel IP64 with Intel Celeron J1900 2.0GHz, projected capacitive touch screen, 2GB DDR3L RAM, 2xGbit LAN, 2xCOM, 4xUSB, mSATA, Wi-Fi, Audio, power supply 9-30V DC
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis, ABS plastic chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 75, Arm
Protection Level of Front Side (Panel)
IP64
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Aspect Ratio
16:10
Brightness
350 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
2 GB
Maximum Memory
8 GB
Ethernet
Controller Type
Realtek RTL8111E PCIe GbE
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Audio
Audio Controller
Realtek ALC892
Drive interfaces
mSATA
1
Antenna characteristics
Cellular interfaces
3G
LED / Controls
LED
1xOn/Off LED, Power LED
Controls
On/Off, 1xReset, AT/ATX Switch
Connectors
Connectors
DB9, 2xRJ45 Ethernet, 4xUSB, Line Out, RJ45 (COM)
System Power Input
Input Voltage DC
9..30 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 10 IoT Enterprise
Dimensions and weight
Width
262 mm
Height
181 mm
Depth
42 mm
Operating Conditions
Operating Temperature
-10..50 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
1.3 kg
Gross Weight
2.5 kg
Construction
Construction Chassis
Plastic Chassis, ABS plastic chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 75, Arm
Protection Level of Front Side (Panel)
IP64
Type
Fanless
