AFL3-W07A-BT-N1/PC/2G

AFL3-W07A-BT-N1/PC/2G

IEI
SKU: 08077000

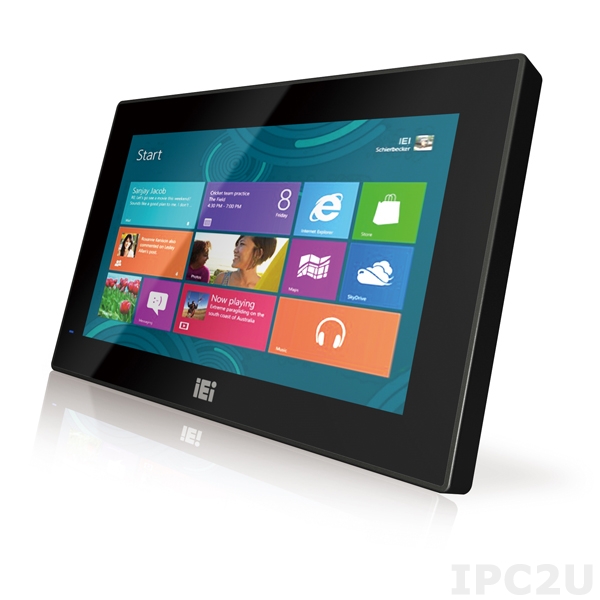

7" 500cd/m2 XGA fanless panel PC with Intel Celeron N2807 1.58GHz, projected capacitive touch screen, 2GB DDR3L RAM, 2xGbit LAN, 2xCOM, 2xUSB, mSATA, Wi-Fi, Audio, power supply 9-30V DC
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel, Wall, 19" Rackmount, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
1024x600 Dots
Brightness
500 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N2807
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek RTL8111E PCIe GbE
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Interfaces
COM Total
2
RS-232
2
USB Total
2
USB v3.x
2
Drive interfaces
mSATA
1
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset, AT/ATX Switch
Connectors
Connectors
DB9, RJ45, 2xRJ45 Ethernet, 2xUSB, DC Input
System Power Input
Input Voltage DC
9..30 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
36 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Linux kernel 3.x, Windows 8.1, Windows 10
Dimensions and weight
Width
190.7 mm
Height
127 mm
Depth
38.9 mm
Operating Conditions
Operating Temperature
-10..45 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.73 kg
Gross Weight
1.8 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel, Wall, 19" Rackmount, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
1024x600 Dots
Brightness
500 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N2807
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek RTL8111E PCIe GbE
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Interfaces
COM Total
2
RS-232
2
USB Total
2
USB v3.x
2
Drive interfaces
mSATA
1
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset, AT/ATX Switch
Connectors
Connectors
DB9, RJ45, 2xRJ45 Ethernet, 2xUSB, DC Input
System Power Input
Input Voltage DC
9..30 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
36 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Linux kernel 3.x, Windows 8.1, Windows 10
Dimensions and weight
Width
190.7 mm
Height
127 mm
Depth
38.9 mm
Operating Conditions
Operating Temperature
-10..45 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.73 kg
Gross Weight
1.8 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel, Wall, 19" Rackmount, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
1024x600 Dots
Brightness
500 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N2807
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek RTL8111E PCIe GbE
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Interfaces
COM Total
2
RS-232
2
USB Total
2
USB v3.x
2
Drive interfaces
mSATA
1
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset, AT/ATX Switch
Connectors
Connectors
DB9, RJ45, 2xRJ45 Ethernet, 2xUSB, DC Input
System Power Input
Input Voltage DC
9..30 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
36 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Linux kernel 3.x, Windows 8.1, Windows 10
Dimensions and weight
Width
190.7 mm
Height
127 mm
Depth
38.9 mm
Operating Conditions
Operating Temperature
-10..45 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.73 kg
Gross Weight
1.8 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel, Wall, 19" Rackmount, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
1024x600 Dots
Brightness
500 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N2807
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek RTL8111E PCIe GbE
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Interfaces
COM Total
2
RS-232
2
USB Total
2
USB v3.x
2
Drive interfaces
mSATA
1
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset, AT/ATX Switch
Connectors
Connectors
DB9, RJ45, 2xRJ45 Ethernet, 2xUSB, DC Input
System Power Input
Input Voltage DC
9..30 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
36 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Linux kernel 3.x, Windows 8.1, Windows 10
Dimensions and weight
Width
190.7 mm
Height
127 mm
Depth
38.9 mm
Operating Conditions
Operating Temperature
-10..45 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.73 kg
Gross Weight
1.8 kg

Get a Quote

IEI
SKU: 08077000
AFL3-W07A-BT-N1/PC/2G
