Aetina's new Mini Series brings high-performance Vision AI into a palm-sized, industrial-grade package. The AIE-CO23/33 ∣ AIE-CN33/43 is a fanless edge AI system measuring just 132 × 91.5 × 68.5 mm, powered by NVIDIA® Jetson Orin Nano™ (with Super Mode) or Jetson Orin™ NX, and delivering up to 100 TOPS of AI compute. With dual PoE camera support and full wired and wireless connectivity, it is built for space-constrained deployments that still demand real-time inference at the edge.

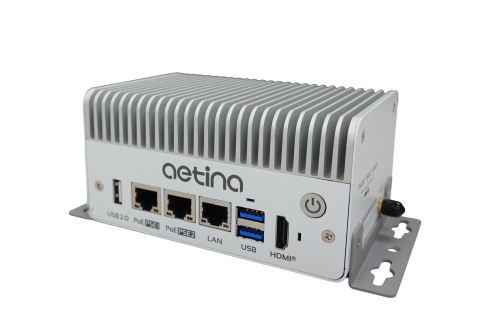

Aetina Mini Series — AIE-CO23/33-S1 ∣ AIE-CN33/43-A1 Palm-Sized Edge AI System
Mini AI. Mighty Vision.
The defining idea behind the Mini Series is delivering uncompromised AI performance in an ultra-compact form factor. Despite fitting in the palm of a hand, the system accelerates Vision AI inference with NVIDIA Jetson Orin modules, supports two PoE cameras for multi-camera deployments, and offers LTE, Wi-Fi, and Bluetooth connectivity for always-on edge intelligence. A fanless, maintenance-free design, wide-voltage input, and a 5-year product life cycle make it dependable for long-term industrial use. The system is available in two performance tiers across four models.
Model Lineup
| Model | NVIDIA Module | AI Performance | Memory | CPU |
|---|---|---|---|---|
| AIE-CO23-S1 | Jetson Orin Nano (Super Mode) 4 GB | 34 TOPS | 4 GB LPDDR5 (51 GB/s) | 6-core Arm® Cortex®-A78AE |
| AIE-CO33-S1 | Jetson Orin Nano (Super Mode) 8 GB | 67 TOPS | 8 GB LPDDR5 (68 GB/s) | 6-core Arm® Cortex®-A78AE |
| AIE-CN33-A1 | Jetson Orin NX 8 GB | 70 TOPS | 8 GB LPDDR5 (102.4 GB/s) | 6-core Arm® Cortex®-A78AE |
| AIE-CN43-A1 | Jetson Orin NX 16 GB | 100 TOPS | 16 GB LPDDR5 (102.4 GB/s) | 8-core Arm® Cortex®-A78AE |
AIE-CO23/33 ∣ AIE-CN33/43 — Fanless Palm-Sized Jetson Orin Edge AI System
The Aetina Mini Series is a fanless edge AI box built around NVIDIA Jetson Orin modules. The AIE-CO23/33 models use the Jetson Orin Nano with Super Mode (4 GB / 8 GB) for up to 67 TOPS, while the AIE-CN33/43 models step up to the Jetson Orin NX (8 GB / 16 GB) for up to 100 TOPS. Across the range, the system pairs an NVIDIA Ampere GPU (with up to 32 Tensor Cores) and a 6- or 8-core Arm Cortex-A78AE CPU with up to 16 GB of high-bandwidth LPDDR5 memory — enough compute to run real-time Vision AI and generative AI inference directly at the edge.
Camera and network connectivity is central to the platform. The system provides two RJ-45 GbE LAN ports plus two IEEE 802.3af GbE PSE ports that power PoE cameras directly (15 W per port, 30 W total PSE budget), enabling dual-camera Vision AI for real-time image capture and inference. A built-in M.2 M-Key slot ships with 128 GB of NVMe storage, and additional M.2 B-Key (LTE) and E-Key (Wi-Fi/BT) slots provide flexible wired and wireless connectivity for deployments where a fixed network link isn't available.
I/O is comprehensive for such a small chassis: 2× USB 3.2 Gen2 Type-A (up to 10 Gbps shared), 1× USB 2.0 Type-A, 1× USB Type-C OTG, HDMI 2.0 display output, 4× GPIO, SPI, 2× I2C, UART, an isolated CAN port with CAN FD support, and a 3-in-1 switchable RS-422/485/232 serial interface — covering the fieldbus and sensor interfaces common on industrial equipment. Onboard TPM and an RTC battery round out the security and timekeeping features.
Built for industrial reliability, the Mini Series uses a fanless, maintenance-free design with a wide 12–24 VDC input and a −25°C to +55°C operating temperature range. It is validated for vibration (1 Grms, IEC 60068-2-64) and shock (10 G, IEC 60068-2-27), certified to CE / FCC Class A / UKCA, and runs Linux with NVIDIA JetPack 6.2 and above. A 5-year product life cycle, backed by Aetina's NVIDIA Elite Partner status and validated peripheral ecosystem, ensures long-term support and simplified integration.
Super Mode — Extra Performance from the Same Module
Selected Jetson Orin modules in the Mini Series support NVIDIA Super Mode, which raises GPU clock speeds and AI throughput without changing the hardware. The performance uplift is substantial across the lineup, as shown below.
| Module | Standard INT8 | Super Mode INT8 | GPU Max Frequency |
|---|---|---|---|
| Orin Nano 4 GB | 20 TOPS | 34 TOPS | 625 → 1020 MHz |
| Orin Nano 8 GB | 40 TOPS | 67 TOPS | 625 → 1020 MHz |
| Orin NX 8 GB | 70 TOPS | 117 TOPS | 765 → 1173 MHz |
| Orin NX 16 GB | 100 TOPS | 157 TOPS | 918 → 1173 MHz |
Target Applications
Smart Cities & Traffic Analysis
Dual PoE cameras and real-time Vision AI inference make the Mini Series well suited to traffic monitoring, intersection analytics, and urban surveillance where space at the deployment point is limited.
Smart Security & Defense
Compact, fanless, and wide-temperature, the system fits constrained security enclosures while running object detection and recognition models locally for low-latency response.
Smart Retail & Operations
On-device inference supports people counting, queue analytics, and shelf monitoring without sending video to the cloud, protecting privacy and reducing bandwidth.
Logistics Robots & AMRs
Low power draw, wide-voltage input, and rich I/O including CAN FD suit the platform to autonomous mobile robots and logistics automation at the edge.
Precision Agriculture
LTE connectivity and a −25°C to +55°C operating range enable deployment in remote outdoor farming environments for crop and livestock monitoring.
Smart Manufacturing & Automation
Up to 100 TOPS of Vision AI compute drives real-time defect detection, robotic guidance, and quality control on the factory floor in a palm-sized footprint.
Products in This Article
-
AIE-CO23/33 ∣ AIE-CN33/43 — Palm-sized fanless Jetson Orin Nano/NX edge AI system, up to 100 TOPS, up to 16 GB LPDDR5, 3× GbE + 2× PoE PSE (30 W), 128 GB NVMe, LTE/Wi-Fi/BT, 12–24 VDC, −25°C ~ +55°C
