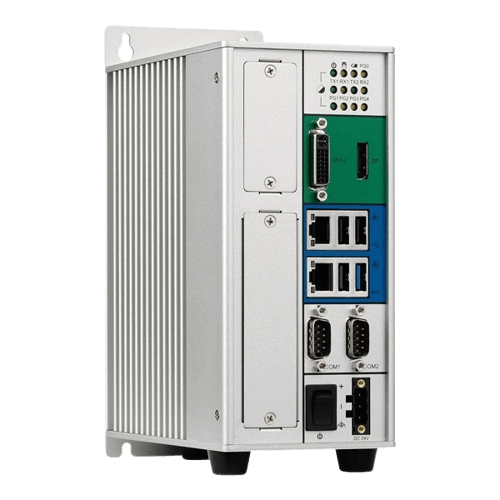

NEXCOM NIFE-200: Vision-Equipped IoT Controller for Smart Machinery and Industry 4.0

The shift from traditional manufacturing to smart, connected factories demands a new class of industrial computing — one that combines PC-based control, fieldbus connectivity, IoT gateway functionality, and machine vision in a single, rugged platform. The NEXCOM NIFE-200 is exactly that: a fanless industrial fieldbus computer built to serve as the intelligent nerve center of smart machinery deployments, helping manufacturers take a concrete step toward Industry 4.0 without discarding existing infrastructure.

The Smart Machinery Challenge

Turning a conventional factory into a Smart Factory is not a single upgrade — it is a systemic transformation that touches every layer of the production environment. Three challenges consistently stand in the way of manufacturers attempting to make this leap: the sheer variety and physical scale of the machinery involved, the complexity of distributed control systems that can include hundreds of independent control nodes, and the legacy device landscape — sensors, actuators, and field devices that were never designed with network connectivity in mind.

A machine controller that addresses these three challenges in one platform — rather than through a patchwork of separate devices — dramatically simplifies the integration effort and reduces the risk of deployment. The NIFE-200 was designed with precisely this goal.

NIFE-200: One Platform, Three Core Functions

The NIFE-200 integrates three functions that Industry 4.0 machinery requires simultaneously: on-machine vision processing, real-time control and monitoring, and IoT gateway connectivity. Running all three on a single unified platform eliminates the latency, cabling complexity, and integration overhead that arise when these functions are handled by separate devices.

Machine Vision — The NIFE-200's Intel Celeron J1900 quad-core processor with integrated HD graphics provides the compute foundation for real-time image acquisition and analysis directly on the machine. This enables quality inspection, complex machining guidance, and process analysis without offloading data to a separate vision PC or server.

Control and Monitoring — EtherCAT fieldbus support delivers high-speed, deterministic communication across distributed control nodes, with synchronization latency controllable to within a tenth of a millisecond. The NIFE-200 supports programming via CODESYS SoftMotion CNC and NEXCOM NexECM software, using IEC 61131-3-compatible libraries of reusable logic and motion functionality — a familiar environment for machine builders accustomed to PLC programming, but with the openness and scalability of a PC-based platform.

IoT Gateway — Dual Intel I210AT Gigabit Ethernet ports, combined with optional Wi-Fi, 3.5G, and 4G LTE modules via Mini-PCIe, connect the machine to factory networks, MES systems, and cloud or Big Data platforms. The NIFE-200 bridges isolated legacy field networks with modern IT infrastructure, enabling data collection and remote monitoring without replacing existing field devices.

Fieldbus Flexibility via Mini-PCIe Expansion

One of the most important practical advantages of the NIFE-200 is its two Mini-PCIe sockets, which allow the platform to be configured with the specific fieldbus protocol required by the target machine or production environment. This means a single hardware platform can serve across different factory environments and customer requirements without mechanical redesign.

Supported fieldbus protocols via optional Mini-PCIe modules:

EtherCAT is particularly well suited to the role of the primary fieldbus in smart machinery applications. Its distributed clock architecture enables tight synchronization of control nodes across large, geographically distributed systems — a requirement for precision machining, multi-axis motion control, and synchronized assembly operations. The combination of EtherCAT and the NIFE-200's multi-core processor allows a significant reduction in the total number of controllers needed on the factory floor, lowering both hardware cost and system complexity.

Technical Specifications

PC-Based Control vs. Traditional PLC

Traditional PLCs, while proven and reliable, present well-known limitations in the context of Industry 4.0: their expandability is constrained, their flexibility in handling complex logic is limited, and integrating them with modern IoT and analytics platforms requires significant additional hardware and middleware. The open architecture of the NIFE-200, based on a standard Intel processor and PC-standard interfaces, avoids all three of these constraints.

The NIFE-200's multi-core J1900 processor can handle complex integration logic, motion control, and kinetics calculations simultaneously — tasks that would require multiple dedicated PLCs in a conventional setup. The high-powered integrated Intel HD Graphics engine enables 4K Ultra HD rendering of machining information and 3D simulation of machining paths on HMI displays, with support for DirectX 12 and OpenGL 4.5. Machine operators can access the JMobile Suite HMI interface from a local station, a mobile device, or a web browser, providing visibility into machining status from virtually anywhere on the factory floor or remotely.

Designed for the Factory Floor

The NIFE-200 is built to operate reliably in the demanding physical conditions of industrial machinery environments. Its fully fanless design eliminates the most common cause of embedded computer failure in dusty or particle-laden factory environments — a moving mechanical component. The wide operating temperature range of -10°C to +60°C covers the thermal range of most indoor industrial spaces, including foundries, packaging lines, and outdoor enclosure cabinets. The 24V DC power input with ±20% tolerance and reverse polarity protection ensures compatibility with standard industrial power systems and provides robustness against power supply variations common in factory environments.

The top-access SD card slot allows field engineers to update firmware, deploy configuration files, or retrieve logs without opening the enclosure or disassembling mounting hardware — an important practical feature for systems installed in tight spaces or on active machinery.

Summary

The NEXCOM NIFE-200 is a purpose-built solution for manufacturers looking to move toward Industry 4.0 without the complexity and cost of deploying multiple separate systems. By combining PC-based control, machine vision processing, flexible fieldbus connectivity across seven protocols, and IoT gateway functionality in a single compact fanless platform, it delivers a practical, field-proven foundation for smart machinery deployments. Its open architecture, IEC 61131-3 software compatibility, and Mini-PCIe-based protocol flexibility make it equally suited to machine builders and system integrators working across diverse industrial environments.

The NIFE-200 is available at IPC2U with professional pre-sales consultation, technical support, and fast European delivery.
