NEXCOM has introduced two new compact panel PCs, the APPC0760-A01 and APPC1060-A01, designed for use in industrial automation systems, operator panels, human-machine interfaces (HMIs), and other industrial applications.
Both models are powered by the energy-efficient Intel N97 processor and feature a fanless design. This makes them well suited for applications where reliability, low noise levels, and minimal maintenance are essential.

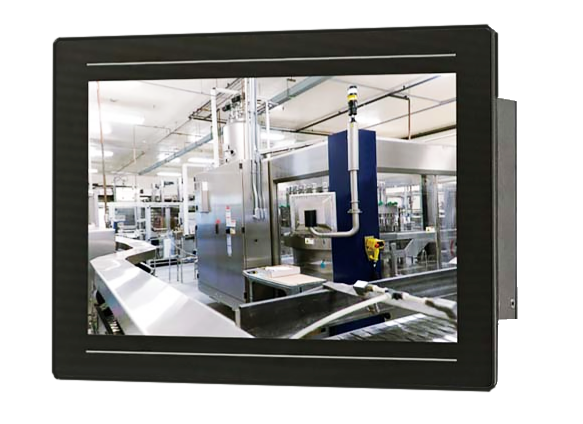

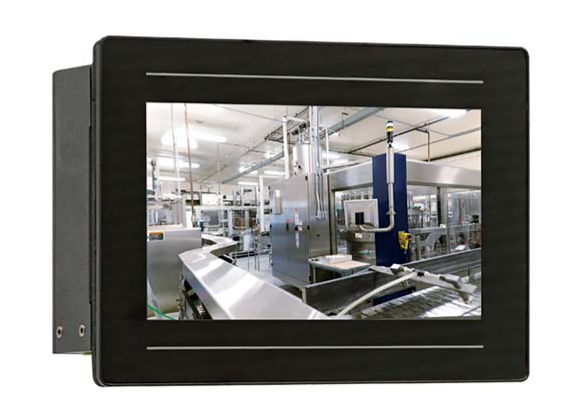

The APPC0760-A01 features a 7-inch display with a resolution of 1024 × 600 pixels, while the APPC1060-A01 is equipped with a 10.1-inch screen offering a resolution of 1280 × 800 pixels. Both panel PCs feature projected capacitive (PCAP) touchscreens that support up to 10 simultaneous touch points. This design enables intuitive, direct interaction with on-screen interfaces and makes the devices suitable for compact operator workstations.
Both the APPC0760-A01 and APPC1060-A01 are powered by a quad-core Intel N97 processor with a clock speed of up to 3.6 GHz. Depending on the model, the systems support up to 32 GB of DDR5-4800 memory. For data storage, the devices feature an M.2 2242 Key B slot with a SATA interface. Additional M.2 slots support the installation of wireless and cellular communication modules, while a nano-SIM slot expands connectivity options for mobile and distributed systems.

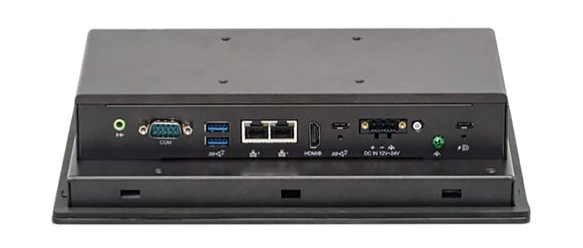

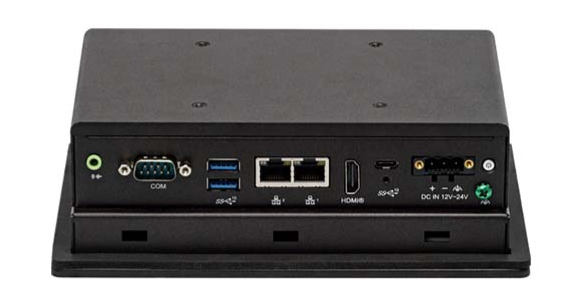

Both models offer a comprehensive range of interfaces for connecting industrial equipment and peripheral devices. Network connectivity is provided by two 2.5GbE ports with support for Wake-on-LAN and PXE technologies. The available interfaces for peripheral connectivity include USB 3.2 Type-A, USB Type-C, HDMI 1.4, and COM ports supporting RS-232/422/485 standards. The systems also feature a line-out audio port and additional internal serial interfaces, providing flexible connectivity options for a wide range of industrial applications.
Comparison of NEXCOM APPC0760-A01 and APPC1060-A01 Panel PCs
| Specification | APPC0760-A01 | APPC1060-A01 |
|---|---|---|
| Display Size | 7 inches | 10.1 inches |
| Display Resolution | 1024 × 600 | 1280 × 800 |
| Display Brightness | 350 nits | 500 nits |
| Protection Rating | IP65 (front panel) | IP65 (front panel) |
| Processor | Intel N97, up to 3.6 GHz | Intel N97, up to 3.6 GHz |
| Memory (RAM) | 8 GB standard, up to 32 GB | 8 GB standard, up to 16 GB |
| Storage | 1 × M.2 2242 Key B, SATA | 1 × M.2 2242 Key B, SATA |
| Network Interfaces | 2 × 2.5GbE | 2 × 2.5GbE |
| USB Ports | 2 × USB 3.2 Type-A + 1 × USB Type-C | 2 × USB 3.2 Type-A + 1 × USB Type-C |
| Serial Interfaces (COM) | 1 × RS-232/422/485 + 2 internal RS-232 ports | 1 × RS-232/422/485 + 2 internal RS-232 ports |
| Power Input | 24 V DC | 24 V DC |
| Operating Temperature | 0 to +50 °C | 0 to +50 °C |
| Mounting Options | Panel mount / VESA 75 | Panel mount / VESA 75 |
The APPC0760-A01 and APPC1060-A01 panel PCs from NEXCOM are compact industrial computing solutions powered by the energy-efficient Intel N97 processor. Both models feature touchscreen displays, dual 2.5GbE network ports, and a comprehensive range of interfaces for connecting industrial equipment and peripheral devices. Available with 7-inch and 10.1-inch displays, respectively, these panel PCs offer flexible configuration options to meet the requirements of various industrial automation systems, operator panels, and human-machine interface (HMI) applications. This allows users to select the model that best suits their specific application needs.
