eBOX630B

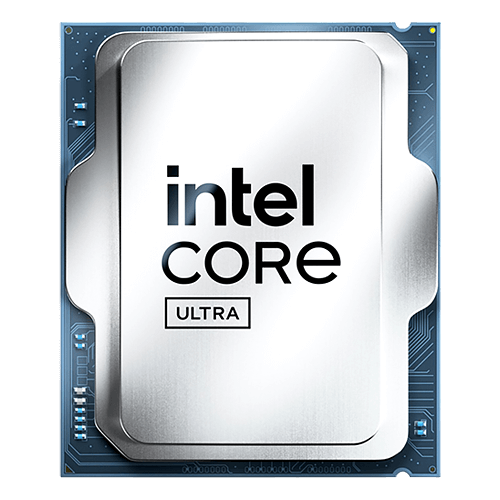

Axiomtek has announced the launch of a new embedded computer model based on the latest 15th-generation Intel Ultra CPU. To achieve optimal performance, the new computer comes with two DDR5 SO-DIMM memory slots, supporting up to 64 GB of RAM without ECC.
|
Intel Ultra |
125U |
125H |
155H |
|
Turbo Boost (GHz) |
4.3 |
4.5 |
4.8 |
|
Cores/Threads |
12/14 |
14/18 |
16/22 |
|
TDP (Watts) |
15 |
28 |
|
Thanks to the built-in Intel Arc Graphics system and processor power of up to 28W, this PC features a fanless cooling system with IP40-rated chassis protection rate, allowing it to be installed in dusty and humid environments. It supports Windows 11 IoT, Linux, and Intel's OpenVINO toolkit, which simplifies the development and deployment of AI-based solutions.
For data storage, the system supports the installation of two 2.5-inch HDD/SSD drives with RAID 0/1 support and one M.2 Key M 2280 slot.
The eBOX630B platform features a wide range of input/output interfaces and expansion slots:

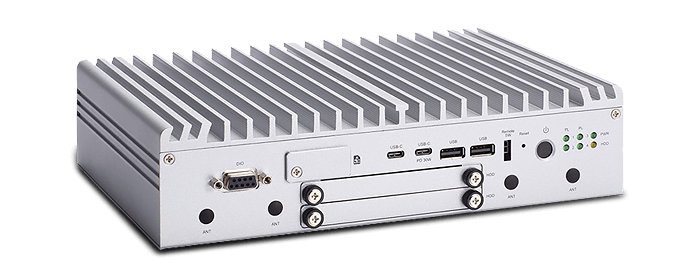

Front side:
- USB Ports:
- 2 × USB 2.0 Type-A
- 1 × USB Type-C (supports DisplayPort and 10 Gbps data transfer)
- 1 × USB Type-C (supports DisplayPort, 10 Gbps data transfer, and power delivery up to 30W)
- Digital Input/Output (DIO):
- 8-channel TTL DIO with a DB9 connector (4 inputs / 4 outputs)
- SIM Card Slot:
- Front-accessible SIM card slot
- Antenna Ports:
- Four antenna holes

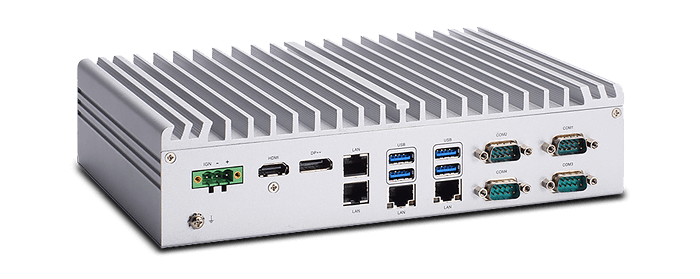

Rear side:
- Network Ports (LAN):
- 3 × 10/100/1000/2500 Mbps (Intel I226-IT)
- 1 × 10/100/1000 Mbps (Intel I210-IT)
- Serial Ports (COM):
- 2 × RS-232/422/485 (COM1/COM2)
- 2 × RS-232 (COM3/COM4)
- Video Interfaces:
- 1 × HDMI 1.4b port
- 1 × DisplayPort++ 1.4a
- USB Ports:
- 2 × USB 3.2 Gen2 (Type-A)
- 2 × USB 2.0 (Type-A)
Expansion slots:
- 1 × M.2 Key E 2230 slot for a Wi-Fi module
- 1 × Full-size PCI Express Mini Card slot (USB + PCIe signals)
The operating temperature range for this computer is -40°C to +70°C.
Power supply: Operates within a 9V to 60V DC range.
Application areas:
This computer is suitable for industrial process automation, transportation and logistics, medical systems, energy and the oil & gas industry, smart cities, and intelligent management systems.
3 models available: eBOX630B-U5-125H, eBOX630B-U7-155H, eBOX630B-U5-125U
