Choosing the Right Industrial Gigabit Switch: Antaira LMX, LMP, LNX & LNP Series Explained

Not every industrial application needs the same switch. Some require full Layer 2 management with ring redundancy and SNMP monitoring. Others just need a rock-solid, plug-and-play device that powers IP cameras and handles a dusty, vibration-heavy environment without complaint. Antaira's gigabit switch lineup covers both ends of this spectrum — and everything in between.

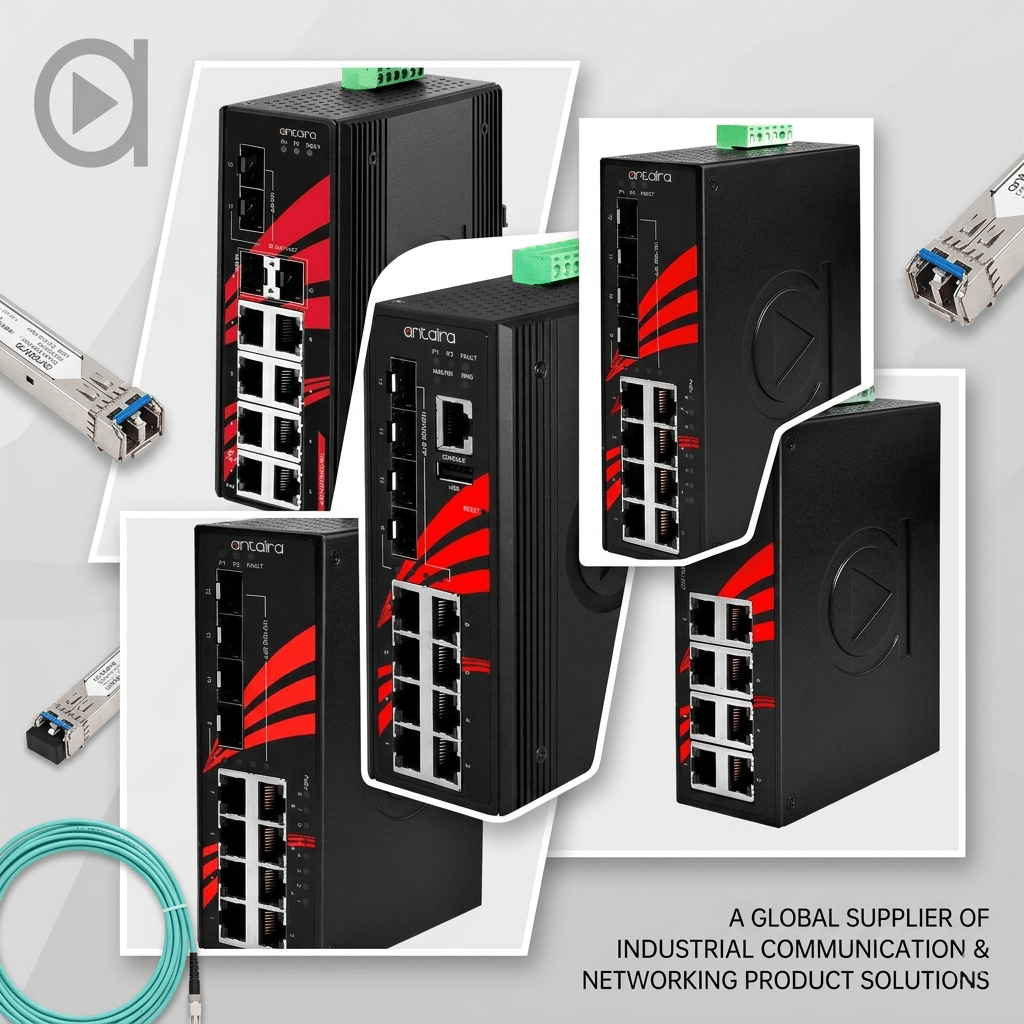

This guide breaks down six models across the LMX, LMP, LNX, and LNP series to help you match the right switch to your application requirements.

Understanding the Series Logic

Antaira uses a consistent naming convention that makes model selection straightforward once you know the pattern:

• L = Industrial DIN-Rail form factor
• M = Managed / N = Unmanaged
• X = without PoE / P = with PoE+
• The number indicates port count and fiber slot configuration

All six models share the same core industrial DNA: IP30-rated metal housing, DIN-Rail and wall-mount support, redundant dual power inputs, high ESD/surge protection, and a 5-year warranty.

The Managed Series: When Control Matters

Managed switches are the right choice when your network needs active monitoring, fault recovery, traffic prioritization, or integration with SCADA systems. All three managed models in this lineup support G.8032 ERPS ring redundancy with sub-50 ms recovery — a critical feature for production lines where any network interruption means downtime.

LMX-1002G-SFP — 10-Port Managed Gigabit, Standard Temperature

The entry point into Antaira's managed gigabit range. Eight RJ45 gigabit ports plus two 100/1000 dual-rate SFP slots give you fiber flexibility without sacrificing copper density. The standard -10°C to +70°C operating range covers the vast majority of indoor industrial environments.

LMX-1204G-SFP-T — 12-Port Managed Gigabit, Extended Temperature

Same managed feature set as the LMX-1002G-SFP but with two additional SFP slots (four total) and a significantly wider operating temperature range of -40°C to +75°C. The "-T" suffix signals true extended-temperature capability — making this model the right choice for outdoor cabinets, tunnels, rooftop installations, or any environment with wide seasonal temperature swings.

LMP-1002G-SFP — 10-Port Managed Gigabit PoE+, ATEX Certified

The managed PoE+ model adds IEEE 802.3at power delivery (30 W per port) to the full Layer 2 management stack. Particularly noteworthy is the PoE Ping Alarm function — the switch automatically power-cycles a PoE port when a connected device stops responding, eliminating the need for manual resets of remote IP cameras or access points. Security protocols including 802.1X, HTTPS, SSH, and SSL make it suitable for SCADA and remote control networks. ATEX certification opens the door to use in Zone 2 hazardous areas.

The Unmanaged Series: Reliability Without Complexity

Unmanaged switches are ideal when simplicity, cost efficiency, and zero-configuration deployment are the priority. Antaira's unmanaged models still deliver industrial-grade reliability — with store-and-forward switching, 20–60 Gbps switching fabric, Jumbo Frame support, and a built-in relay output that triggers an alarm when power fails.

LNX-1002G-SFP — 10-Port Unmanaged Gigabit

A straightforward 10-port gigabit switch with 8 copper ports and 2 SFP slots. The 20 Gbps non-blocking switching fabric and 8K MAC address table handle demanding data loads without bottlenecks. Surge protection up to 2,000 VDC and ESD protection to 6,000 VDC ensure it survives the transient-heavy environment typical of factory floors and outdoor cabinets.

LNP-1204G-SFP — 12-Port Unmanaged Gigabit PoE+

When you need to power multiple devices from a single switch without the overhead of management, the LNP-1204G-SFP delivers. Eight PoE+ ports at 30 W each, backed by four SFP uplink slots for long-distance fiber connections. The 24 Gbps switching fabric handles simultaneous gigabit traffic across all ports without congestion.

LNP-1204G-10G-SFP — 12-Port Unmanaged PoE+ with 10G Uplinks, Extended Temperature

The most capable unmanaged model in this group. While it shares the same plug-and-play simplicity as the other LNP models, it adds two 10G SFP+ uplink slots alongside two standard 1G SFP slots — enabling high-bandwidth aggregation to backbone switches or servers. A total PoE budget of 240 W across eight ports supports demanding devices such as PTZ cameras and multi-radio access points. The -40°C to +65°C operating range makes it equally at home in outdoor transportation infrastructure or cold-storage facilities.

Side-by-Side Comparison

Which Model Fits Your Application?
