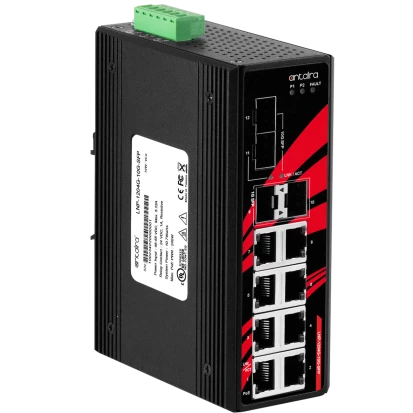

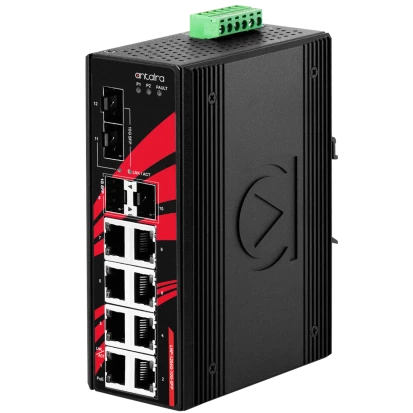

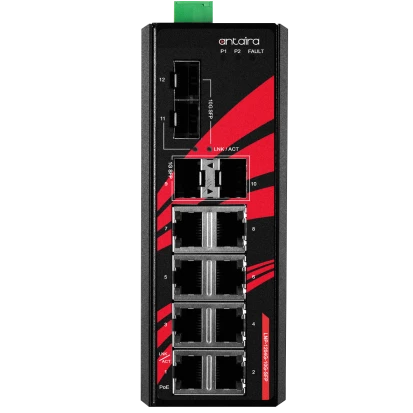

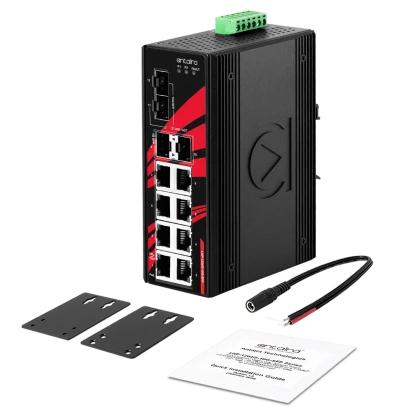

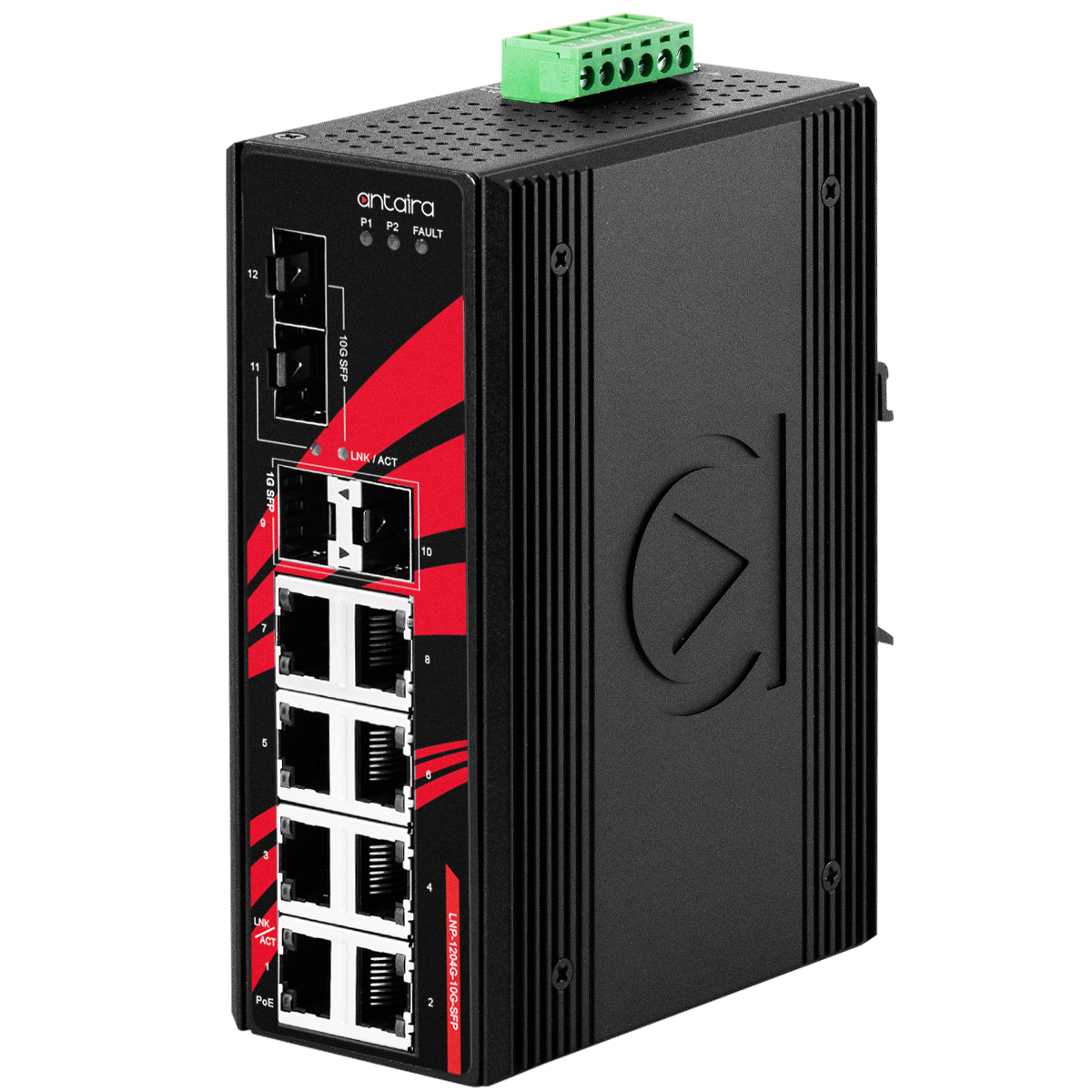

LNP-1204G-10G-SFP
Antaira Technologies
SKU: 80187900
Industrial Unmanaged PoE+ Ethernet Switch, IP30, 10x10/100/1000Base-TX with PoE+, 2x100/1000 SFP, 2x10G SFP+, 48..55 VDC, Operating Temperature -40..65 C
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
SFP 100/1000 Mbit Ports
2
10 Gbit SFP+ Ports
2
PoE+ 10/100/1000 Mbit/s
8
Switch Properties
MAC Table Size
16000
Jumbo Frame Size
9.6 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
48..55 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration

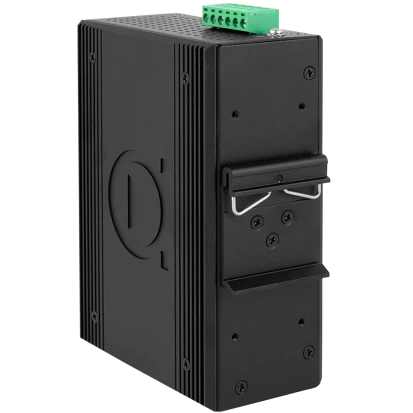

DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
54 mm
Depth
142 mm
Height
99 mm
Operating Conditions
Operating Temperature
-40..65 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035
Safety
UL 61010-2-201
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.14 kg
Gross Weight
1.4 kg
