Axiomtek expands its lineup of rugged fanless panel PCs with the new GOT-515-RPL-WCD model.
The computing core of the new model is the 13th-generation Intel Raptor Lake i5-1335UE processor. This 10-core CPU features a maximum Turbo frequency of 4.50 GHz, with a TDP limit not exceeding 28W. A less powerful CPU is also an option: the Intel U300E, which has a maximum Turbo frequency of 4.30 GHz and also maintains a TDP of up to 28W.
The the model supports DDR5 SO-DIMM memory, with one slot accommodating up to 48GB. For data storage, there are two slots: 1× M.2 2280 and 1× mSATA.
Technical specifications:
- USB & serial interfaces:
- 2 × USB 2.0
- 1 × COM (RS-232) or 2 × CAN Bus (optional)
- 1 × COM (RS-232/422/485) (default RS-232, A-coded)
- 1 × USB 2.0 dual port (A-coded)
- Network ports:
- 1 × 1Gb LAN
- 1 × 2.5Gb LAN
- Expansion slots:
- 1 × Mini-PCIe slot for a module
- 1 × M.2 Key E 2230 for Wi-Fi and Bluetooth
- 1 × M.2 Key M 2280 for SSD
- Power Supply:
- Input voltage: 9–36V DC
- Operating conditions:
- Operating temperature: -20°C to +50°C
- Physical dimensions:
- Size: 397.6 × 60.5 × 245 mm
- Brightness: 450 nits

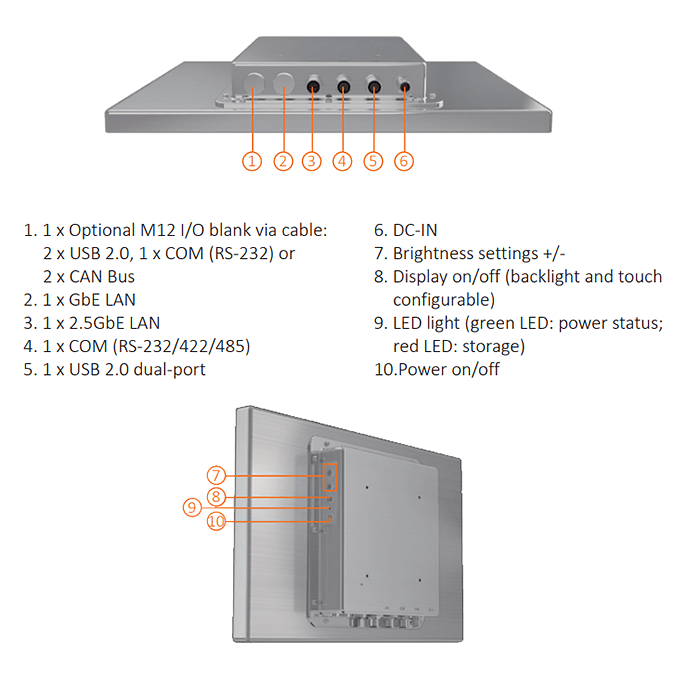

All connectors are designed as screw-locking M12 types;
The primary user interface is a capacitive touchscreen, but in addition to that, a side panel with physical buttons allows for screen power-off and brightness adjustment. Below this panel, there is also a power button.
Compliance certifications:
- CE Class A, IEC/EN61000 6-4, IEC E61000-6-2
- FCC 47 CFR Part 15 Subpart B
- UKCA
- RoHS standard
The GOT-515-RPL-WCD is a modern and reliable solution featuring a stainless steel enclosure. With IP66 compliance, this model is resistant to dust, water, corrosion, and heat, making it an ideal choice for operation in the harshest and most demanding environments.
