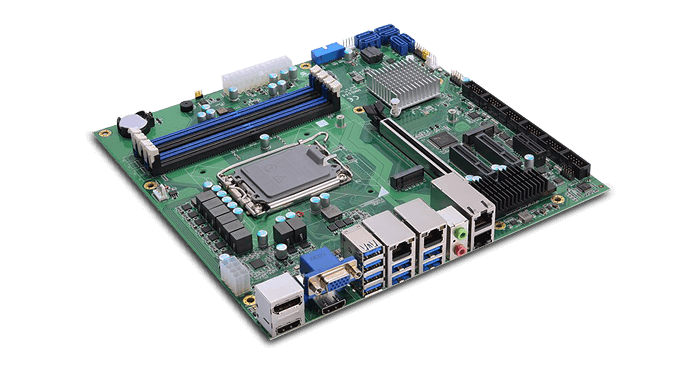

Axiomtek presents a new high performance Micro ATX mainboard designed for demanding industrial and commercial applications: MMB566. This solution is ideal for remote control and automated test equipment, providing accurate monitoring and control of the system.
MMB566 equipped with two 2.5GbE LAN ports with additional 10GbE LAN ports. It has up to six SATA ports, six COM ports and twelve USB ports, which provide seamless integration with various peripherals. With support for TPM and Intel® AMT, MMB566 improves security and remote management.
MMB566 is powered by Intel® UHD Graphics 700, it supports quad display output via DisplayPort++, VGA, and two HDMI ports. It also delivers superior audio quality with the Realtek ALC888S HD codec and offers comprehensive connectivity with ten USB 3.2 Gen1 ports, two USB 2.0 ports, and multiple serial ports.
MMB566 has a a 24+8-pin ATX power connector with AT Mode Auto Power support, providing stable and efficient power supply for continuous operation. Built for tough conditions, it operates in a temperature range from 0°C to +60°C.
Technical characteristics:
- Intel® Core™ i9/i7/i5/i3 or Celeron® 14th/13th/12th gen CPU with LGA1700 socket
- Intel® Q670E/R680E/H610E chipset
- DDR4-3200 4x Long DIMM, 128GB max
- Two 2.5GbE LAN ports and two 10GbE LAN ports (option)
- 10xUSB 3.2 Gen1
- 2xRS-232/422/485 and 4xRS-232
- 6xSATA 3.0 с RAID 0/1/5/10
- 1PCIe x16, 2 PCIe x4 and 1 PCIe x1
- 1 key M.2 M 2280 and 1 key M.2 E 2230
