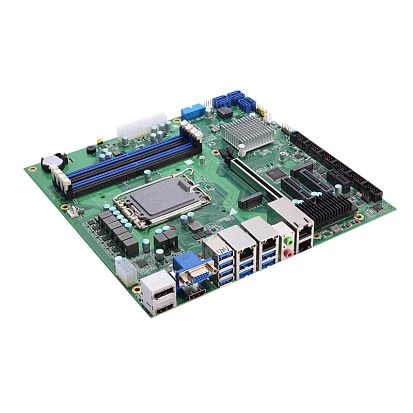

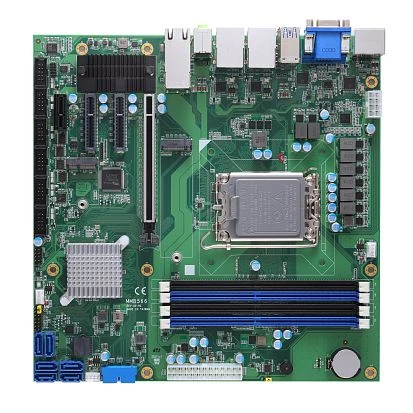

MMB566-Q670E-S
AXIOMTEK
SKU: 80115000
Micro-ATX Motherboard, LGA1700, Intel 14/13/12th Gen Core i9/i7/i5/i3 CPU, Intel Q670E, Up to 128GB DDR4 RAM, DP, HDMI, VGA, 2x10GbE LAN, 2x2.5GbE LAN, 6xCOM, 10xUSB 3.2, 2xUSB 2.0, 6xSATA, 1xM.2 Key-M, 1xM.2 Key-E, 1xPCIe x16, 2xPCIe x4, 1xPCIe x1
Price on request
Available
Available
System Architecture
Form Factor
Micro ATX
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Socket
LGA1700
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR4
Socket Type
4xDIMM
ECC
No
Maximum Memory
128 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, 2xHDMI, VGA
Ethernet
Controller Type
Intel i226-LM
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
12
USB 2.0
2
USB v3.x
10
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC888S
Drive interfaces
SATA 3
6
RAID Levels
0, 1, 5, 10
M.2
1
Extension Slots
Total
6
PCI Express x16
1
PCI Express x4
2
PCI Express x1
1
M.2
2
M.2 Form Factor
2280 M, 2230 E
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xUSB 2.0, 10-pin DIO, 24-pin ATX, 5xCOM, 8-pin ATX, 2xUSB 3.0, 6xSATA 3
Connectors

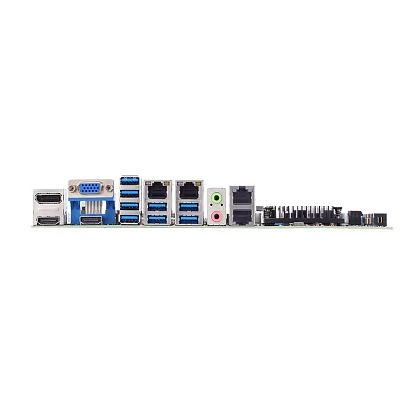

DB15 VGA, 2xHDMI, 2xRJ45 Ethernet, 8xUSB, Mic In, Line Out, Display Port
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
244 mm
Length
244 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-95%
Dimensions
Net Weight
0.55 kg
Gross Weight
0.9 kg
