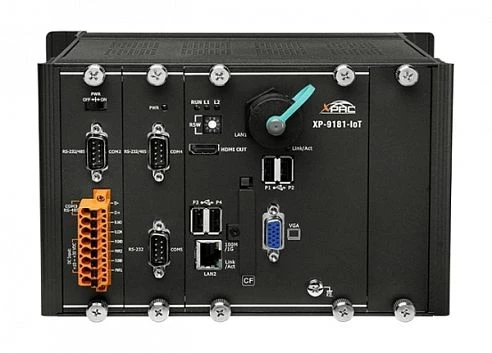

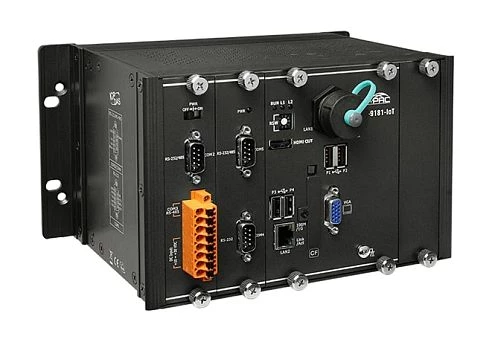

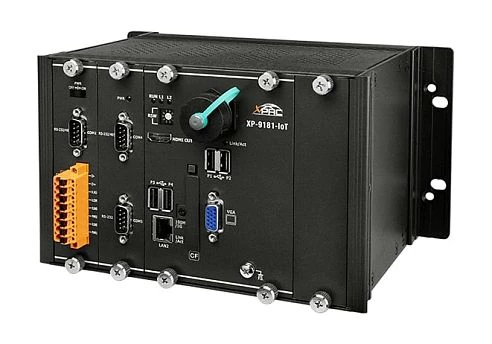

XP-9181-IoT
ICP DAS
SKU: 09139900
PC-compatible Industrial Controller, Intel Atom E3845 1.91GHz CPU, 4GB DDR3 SDRAM, 64GB Flash, 64GB SSD, 32GB CF card, 1xRS-232, 1xRS-485, 2xRS-232/485, VGA, HDMI, 2xEthernet, 4xUSB 2.0, Windows 10 IoT Enterprise (64-bit), with 1 Expansion Slot
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Memory
Default on Board Memory
4 GB
Installed drive
Flash Memory Capacity
64 MB
EEPROM Memory Capacity
16 kB
MRAM Memory Capacity
128 kB
1st Storage Capacity
32 GB
Drive interfaces
CompactFlash Slots
1
Expansion Module
Quantity of Slots
1
Supported Module
I-9K series, I-97K series
Software
Operating System Installed
Windows IoT Enterprise 10
Programming Method
C/C++
Development Software
Visual Studio .NET
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
1
RS-485
1
RS-232/485
2
USB Total
4
Additional Functions
Watchdog timer type
Hardware, Software
Connectors
Connectors
spring clamp terminal block
Graphic
Interfaces
HDMI, VGA
Dimensions and weight
Width
239 mm
Depth
164 mm
Height
133 mm
System Power Input
Input Voltage DC
10..30 V
Power Supply Reserve input Voltage DC
10..30 V
Redundant power input
Yes
Operating Conditions
Operating Temperature
-25..60 °C
Dimensions
Gross Weight
1 kg
