WTD-15

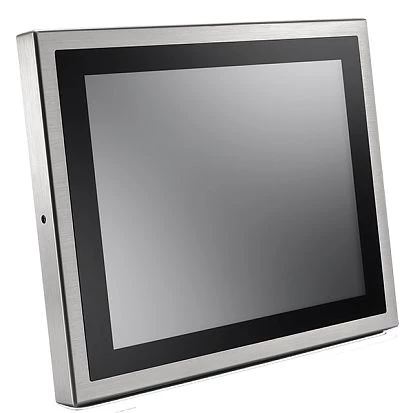

WTD-15

Wincomm
SKU: 08355300
Full IP Stainless Monitor 15", 1024x768 450 nits, Resistive touch screen (USB M12), VGA, HDMI, 12VDC-in (M12), IP69K/IP67
Price on request
Available
Available
Construction
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP67, IP69K
Protection Level of Chassis
IP67, IP69K
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
450 Cd/m2
Contrast Ratio
600~1
Touch Screen
Touch Screen Type
Resistive
LED / Controls
Controls
Control Buttons
Connectors
Connectors
DB15 VGA, HDMI, 1xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Operating Conditions
Operating Temperature
-10..55 °C
Dimensions and weight
Width
395 mm
Height
309.5 mm
Depth
64 mm
Standards and Certifications
Certifications
CE, FCC, VCCI
Dimensions
Net Weight
7.5 kg
Gross Weight
9 kg
