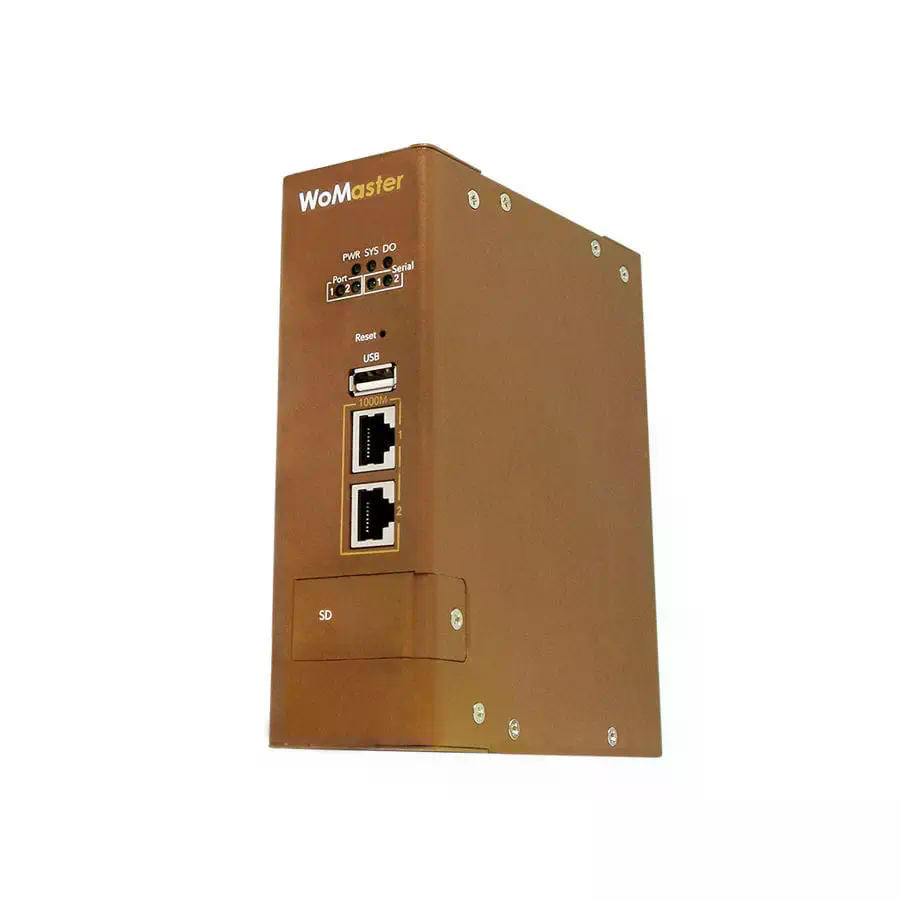

WR302G-EC
WoMaster
SKU: 57705600
Industrial IP30 Secure Gigabit IIoT Router, 2-Port 10/100/1000MBase-T, 2xCOM, 1xUSB, 1xMicroSD, 2xSIM, 12..48VDC, -40..75 C Operating Temperature
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
2
Interfaces
RS-232/422/485
2
USB Total
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Supported Protocols
Protocol Layer 3
VRRP, RIP V1/V2, OSPF
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X)
System Power Input
Power Consumption
6.24 W
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
50 mm
Depth
120 mm
Height
151 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 22 Class
EMS
EN 50121-4, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032
Safety
EN 60950-1, EN 62368-1 (LVD)
Dimensions
Net Weight
0.66 kg
Gross Weight
1.1 kg
Ethernet
