WGS-4215-8P2XV
Planet
SKU: 80081100

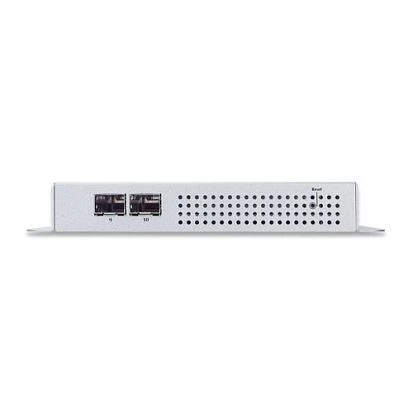

Industrial L2 Managed Ethernet Switch, IP30, 8x10/100/1000Base-T with PoE, 2x100/1000/2.5G/10GBase-X SFP, 48..54VDC, -20..70C Operating Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
10 Gbit SFP+ Ports
2
PoE 10/100/1000 Mbit/s
8
Switch Properties
Jumbo Frame Size
12 kB
Supported Protocols
Protocol Layer 3
Static Routing
Managment Protocols
SNMPv1/v2c/v3, HTTP, LLDP, Syslog, DHCP, SNTP, TFTP, LACP, IGMP Snooping v1/v2/v3, IGMP Querier
Reservation protocols
ERPS, STP
Security Protocols
RADIUS, TACACS+, SSH2
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3az for Energy-Efficient Ethernet
System Power Input
Input Voltage DC
48..54 V
Construction
Mounting Configuration
Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
245 mm
Depth
36 mm
Height
140 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.93 kg
Gross Weight
1.5 kg
