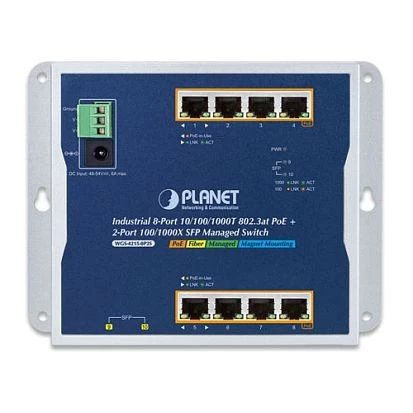

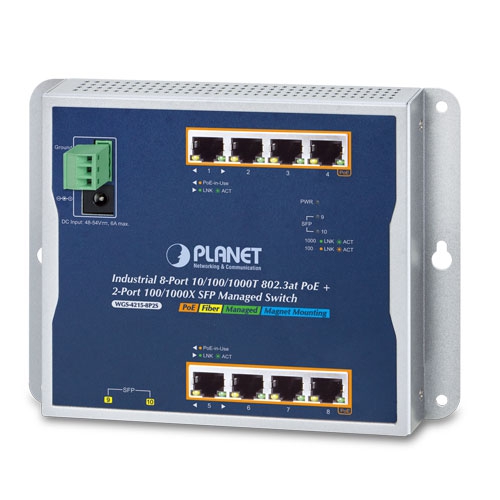

WGS-4215-8P2S

WGS-4215-8P2S

Planet
SKU: 56822400
Industrial Managed Switch, IP30, 8x10/100/1000Base-T RJ45 ports with PoE+, 2x100/1000Base-X SFP, 48..54VDC In, -40..75C Operating Temperature
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
8

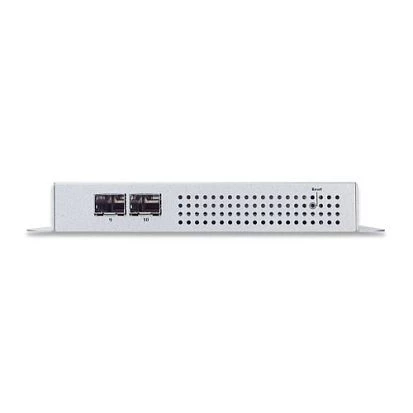

SFP 100/1000 Mbit Ports
2
PoE+ 10/100/1000 Mbit/s
8
Supported Protocols
Managment Protocols
IGMP, IGMPv1/v2/v3
Security Protocols
SSH, SSL
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
48..56 V
Construction
Construction Chassis
Metal Chassis

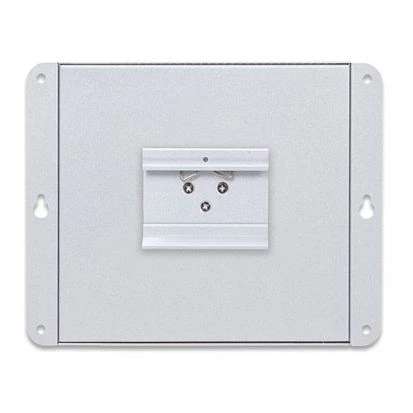

Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
134 mm
Depth
25 mm
Height
148 mm
Operating Conditions
Operating Temperature
-45..70 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Rolling Stock
EN 50155
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.64 kg
Gross Weight
1.14 kg
