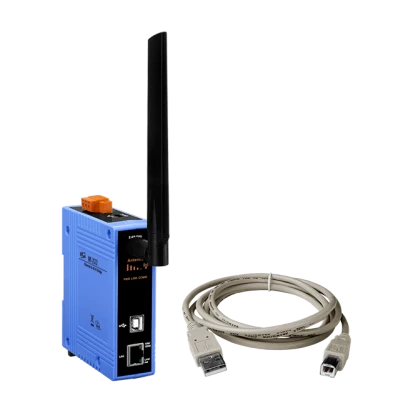

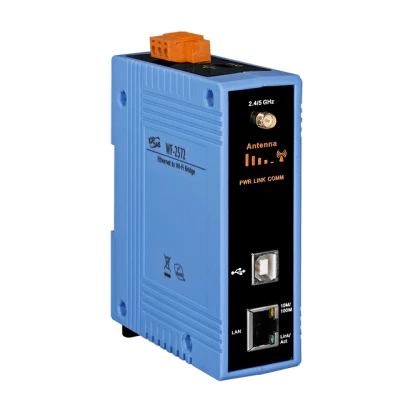

WF-2572

WF-2572

ICP DAS
SKU: 08302000
Module Ethernet to Wi-Fi Bridge IEEE 802.11a/b/g
Price on request
Available
Available

Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g
Quantity of Wi-Fi
1
LED / Controls
LED
Power LED, Level signal LED, STATE LED, 10/100/1000M LED, WLAN LED
Setup of Operation Mode
Through utility by USB port
Connectors
Connectors
USB type B
System Power Input
Input Voltage DC
10..30 V
Power Consumption
1.6 W
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Type
Fanless
Dimensions and weight
Width
33 mm
Depth
95 mm
Height
120 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.33 kg
Gross Weight
0.33 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g
Quantity of Wi-Fi
1
LED / Controls
LED
Power LED, Level signal LED, STATE LED, 10/100/1000M LED, WLAN LED
Setup of Operation Mode
Through utility by USB port
Connectors
Connectors
USB type B
System Power Input
Input Voltage DC
10..30 V
Power Consumption
1.6 W
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Type
Fanless
Dimensions and weight
Width
33 mm
Depth
95 mm
Height
120 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.33 kg
Gross Weight
0.33 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g
Quantity of Wi-Fi
1
LED / Controls
LED
Power LED, Level signal LED, STATE LED, 10/100/1000M LED, WLAN LED
Setup of Operation Mode
Through utility by USB port
Connectors
Connectors
USB type B
System Power Input
Input Voltage DC
10..30 V
Power Consumption
1.6 W
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Type
Fanless
Dimensions and weight
Width
33 mm
Depth
95 mm
Height
120 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.33 kg
Gross Weight
0.33 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g
Quantity of Wi-Fi
1
LED / Controls
LED
Power LED, Level signal LED, STATE LED, 10/100/1000M LED, WLAN LED
Setup of Operation Mode
Through utility by USB port
Connectors
Connectors
USB type B
System Power Input
Input Voltage DC
10..30 V
Power Consumption
1.6 W
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Type
Fanless
Dimensions and weight
Width
33 mm
Depth
95 mm
Height
120 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.33 kg
Gross Weight
0.33 kg

Documentation
Datasheet_WF-2572 WF-2572 User Manual WF-2572 Quick Start
Documentation
Datasheet_WF-2572 WF-2572 User Manual WF-2572 Quick Start
Documentation
Datasheet_WF-2572 WF-2572 User Manual WF-2572 Quick Start
Documentation
Datasheet_WF-2572 WF-2572 User Manual WF-2572 Quick Start
