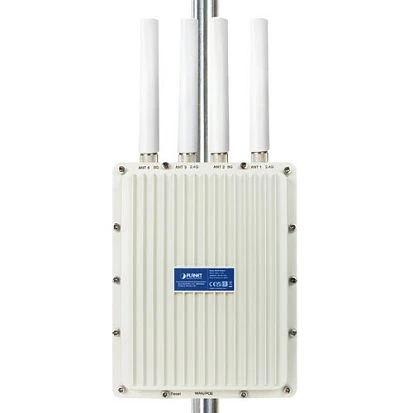

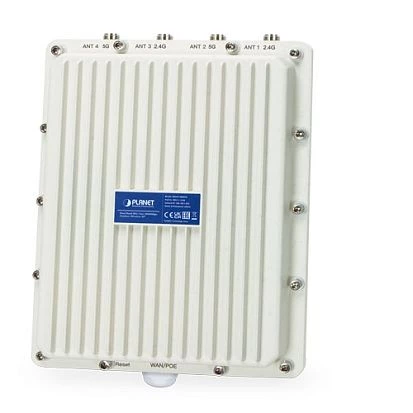

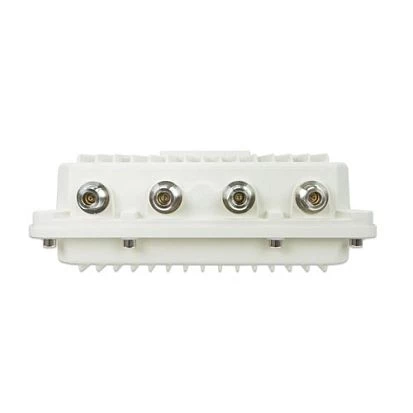

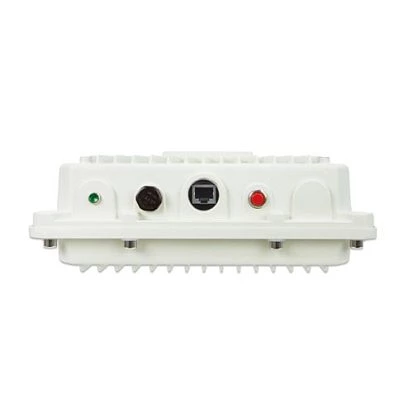

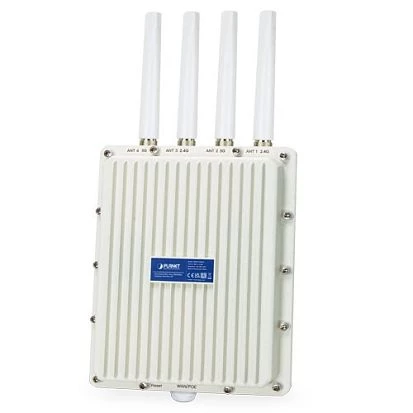

WDAP-3000AX

WDAP-3000AX

Planet
SKU: 57812000
Outdoor Wireless AP IP67, 1-Port 10/100/1000BASE-T with PoE, 4xN-tape, 48 VDC, Operating Temperature -40..70 C
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
PoE 10/100/1000 Mbit/s
1
PoE+ 10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11k, 802.11r, 802.11v, 802.11a/b/g/n/ac/ax
Antenna characteristics
Function
Wi-Fi
Supported Protocols
Managment Protocols
IGMP, DHCP Client, ICMP
Security Protocols
RADIUS, PPTP, L2TP
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for Flow Control, IEEE 802.11a/b/g/n for Wireless LAN, IEEE 802.11i for Wireless Security, IEEE 802.3u for 100BaseT(X)
LED / Controls
LED
Power LED
System Power Input
Power over Ethernet (PoE)
PoE, IEEE 802.3at
Construction
Construction Chassis
Aluminium Chassis
Protection Level of Chassis
IP67
Dimensions and weight
Width
231 mm
Depth
80 mm
Height
295 mm
Operating Conditions
Operating Temperature
-40..70 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
2.53 kg
Gross Weight
3 kg
