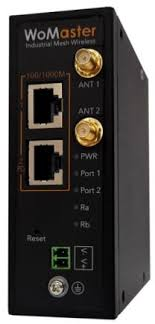

WA512GM-D-M2
WoMaster
SKU: 57702300
Industrial Din-Rail IP30 Wireless Router with M2 expansion slot, CPU Quad-Core 4xARM Cortex A7, 2-Port 10/100/1000MBase-T with PoE, 6xSMA, 2xSIM, 44..57VDC, -40..70 C Operating Temperature
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
2
PoE 10/100 Mbit/s
1
Supported Protocols
Protocol Layer 3
VRRP, RIP V1/V2, OSPF
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X)
LED / Controls
LED
WLAN LED
Controls
1xReset
Connectors
Connectors
4xSMA
System Power Input
Power Consumption
20 W
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
40 mm
Depth
107 mm
Height
110 mm
Standards and Certifications
EMS
EN 55032, EN 55035
Safety
UL 62368-1, IEC 62368-1
Dimensions
Net Weight
0.66 kg
Gross Weight
0.7 kg
Ethernet
10/100/1000 Mbit/s
2
PoE 10/100 Mbit/s
1
Supported Protocols
Protocol Layer 3
VRRP, RIP V1/V2, OSPF
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X)
LED / Controls
LED
WLAN LED
Controls
1xReset
Connectors
Connectors
4xSMA
System Power Input
Power Consumption
20 W
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
40 mm
Depth
107 mm
Height
110 mm
Standards and Certifications
EMS
EN 55032, EN 55035
Safety
UL 62368-1, IEC 62368-1
Dimensions
Net Weight
0.66 kg
Gross Weight
0.7 kg
Ethernet
10/100/1000 Mbit/s
2
PoE 10/100 Mbit/s
1
Supported Protocols
Protocol Layer 3
VRRP, RIP V1/V2, OSPF
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X)
LED / Controls
LED
WLAN LED
Controls
1xReset
Connectors
Connectors
4xSMA
System Power Input
Power Consumption
20 W
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
40 mm
Depth
107 mm
Height
110 mm
Standards and Certifications
EMS
EN 55032, EN 55035
Safety
UL 62368-1, IEC 62368-1
Dimensions
Net Weight
0.66 kg
Gross Weight
0.7 kg
Ethernet
10/100/1000 Mbit/s
2
PoE 10/100 Mbit/s
1
Supported Protocols
Protocol Layer 3
VRRP, RIP V1/V2, OSPF
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X)
LED / Controls
LED
WLAN LED
Controls
1xReset
Connectors
Connectors
4xSMA
System Power Input
Power Consumption
20 W
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
40 mm
Depth
107 mm
Height
110 mm
Standards and Certifications
EMS
EN 55032, EN 55035
Safety
UL 62368-1, IEC 62368-1
Dimensions
Net Weight
0.66 kg
Gross Weight
0.7 kg
Documentation
Documentation
Documentation
Documentation
Get a Quote
