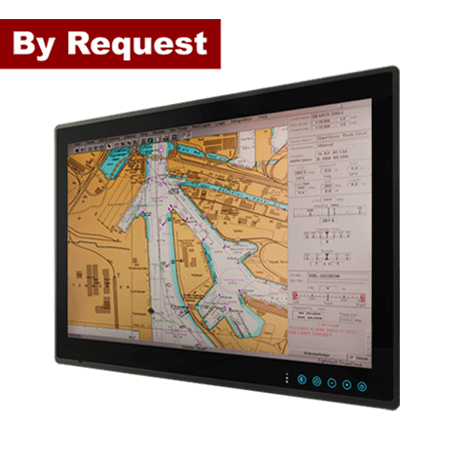

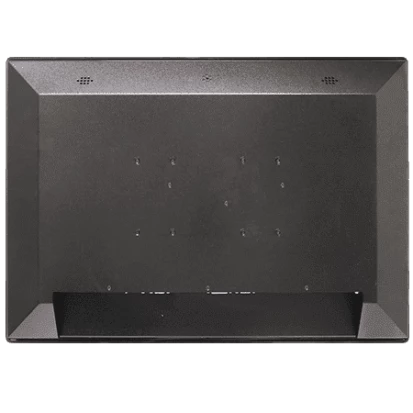

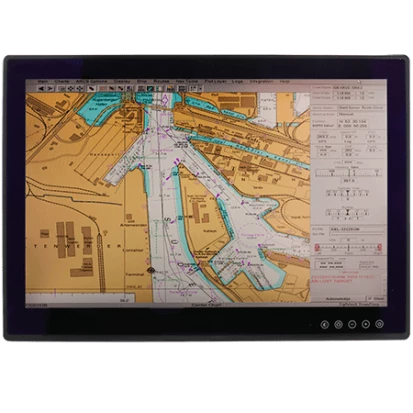

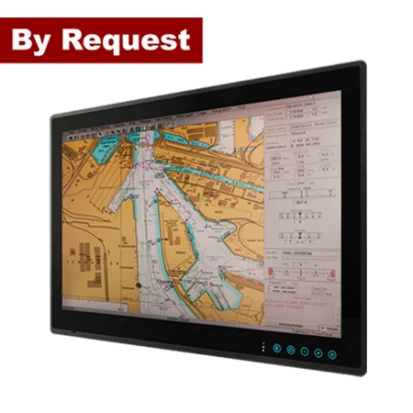

W26L100-MRA1FP
Winmate
SKU: 06816300
26" Marine Display (by request), IP66 Front, 1920x1200, 350cd/m2, PCAP touch, HDMI, DVI-D, VGA, 1xUSB for touch, 1xCOM, 9-36VDC-in, IEC 60945 4th, IACS-E10, DNV-CG-0339, (Optional Color calibrated for ECDIS compliance)
End-of-life product
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100, VESA 200x100
Protection Level of Front Side (Panel)
IP66
Display
Display Type
LCD TFT
Diagonal
26 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
350 Cd/m2
Contrast Ratio
1500~1
Input Interface
HDMI, VGA, DVI-D
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
DB9, DVI-D, DB15 VGA, HDMI, 1xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
55 W
Operating Conditions
Operating Temperature
-15..55 °C
Humidity
5-95%
Dimensions and weight
Width
621 mm
Height
432.4 mm
Depth
85.5 mm
Standards and Certifications
Certifications
CE, FCC
Marine grade
DNV, IACS-E10, IEC 60945 4th
Dimensions
Net Weight
12.8 kg
Gross Weight
13.5 kg
Documentation
Request for replacement
