W10L100-PCH2LB
Winmate
SKU: 56977000

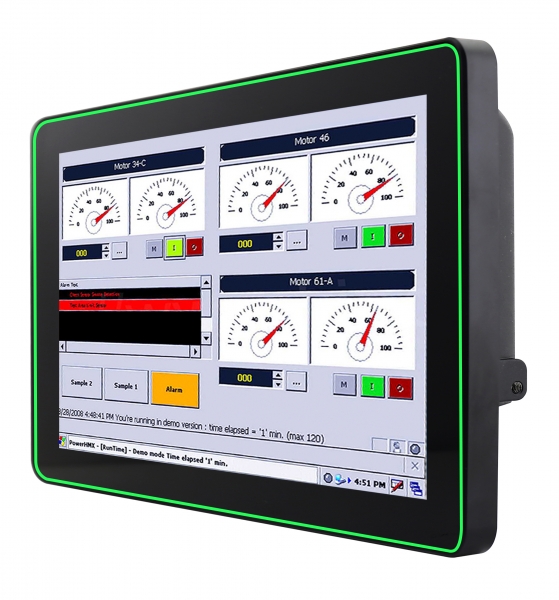

10.1" Projected Capacitive Touch monitor, 1280x800, 350 cd/m2, VGA+HDMI, IP65 Front, VESA, 12V DC
Price on request
Available
Available
Construction
Construction Chassis
ABS plastic chassis
Mounting Configuration
Panel, Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
350 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
LED
Programmable LED Light Bar Indicator
Controls
KeyPad
Connectors
Connectors
DB9, DB15 VGA, HDMI, DC Input, USB type B
System Power Input
Input Voltage DC
12..12 V
Power Consumption
10 W
Operating Conditions
Operating Temperature
0..50 °C
Dimensions and weight
Width
263.28 mm
Height
171 mm
Depth
35.7 mm
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
2 kg
