CVM115P/DP
Industrial Personal Computer 2U GmbH
SKU: 80231300

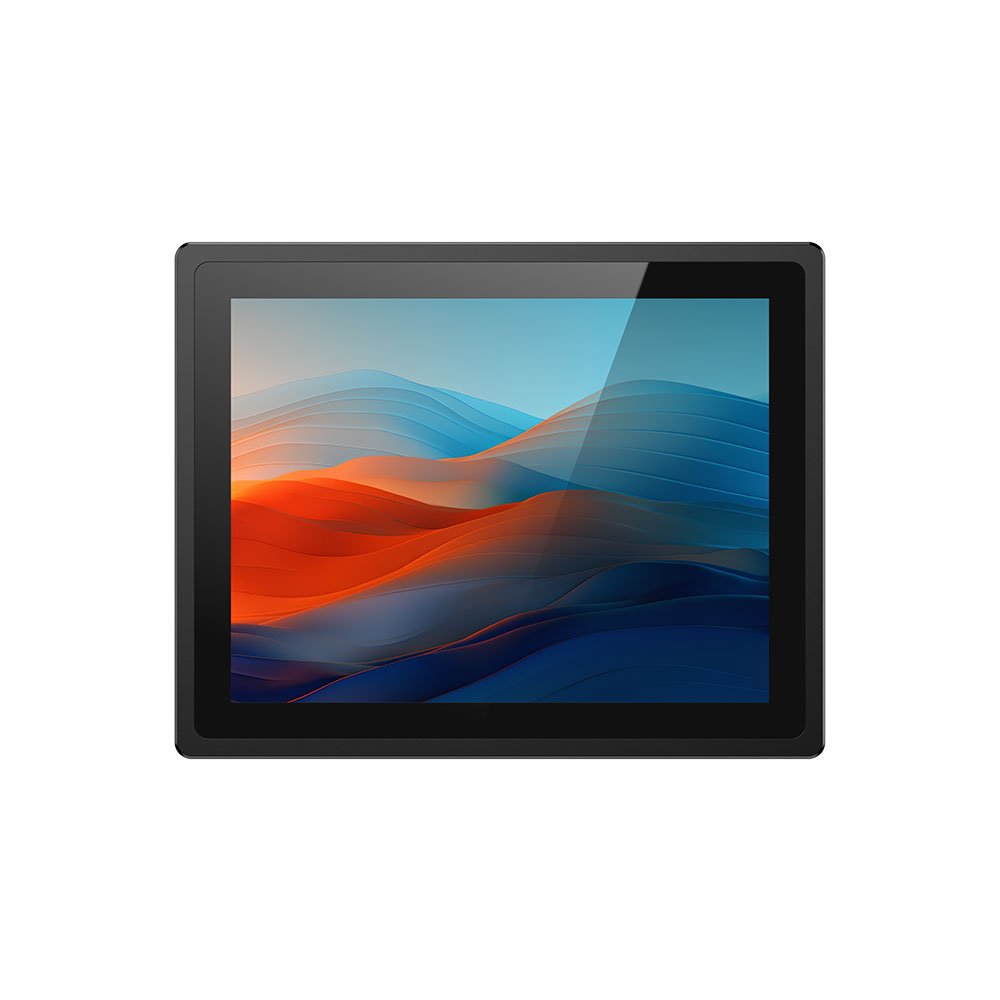

15" Industrial Monitor CaphView, 1024x768, 350 cd/m2, P-CAP touch screen, VGA, DVI, DP, USB touch, 12-24V DC-in 2-pin terminal block, 8x mounting clips, incl. 60W power adapter
441,29 €
Price exlc. VAT and shipping costs
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP64, IP65
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Input Interface
DisplayPort
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
Controls
On/Off, Control Buttons
Connectors
Connectors
DVI-D, DB15 VGA, 1xUSB, Line Out, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
12..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-95%
Vibration
5-500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Temperature (Storage)
-20~+60
Humidity (Storage)
10~95%
Dimensions and weight
Width
370 mm
Height
294 mm
Depth
41.5 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
3.45 kg
Gross Weight
4.5 kg
