Touch-Extend-15.6-Einbau--C

Touch-Extend-15.6-Einbau--C

SKU: 80103300

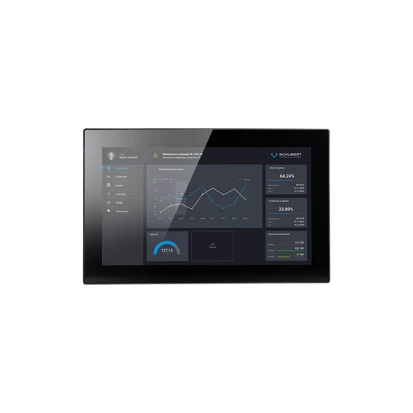

Prime Panel Extend 15.6" Einbau, IP65 Front, 1920x1080, 450cd/m2, PCAP Touch, 1xRJ45 RX Extend, 2xUSB 2.0 Hub Optional, 24VDC-in, 3-Jahre Garantie
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP20
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
450 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
Connectors
Connectors
RJ45, DC Input
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
20-85%
Temperature (Storage)
-20~+60
Dimensions and weight
Width
406.5 mm
Height
256 mm
Depth
64 mm
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4
Safety
CSA, UL 61010-2-201
Vandal Resistance
EN 62262, IK08 level
Dimensions
Net Weight
2.6 kg
Gross Weight
3.1 kg
