W10L100-PCH2-POE
Winmate
SKU: 07935800

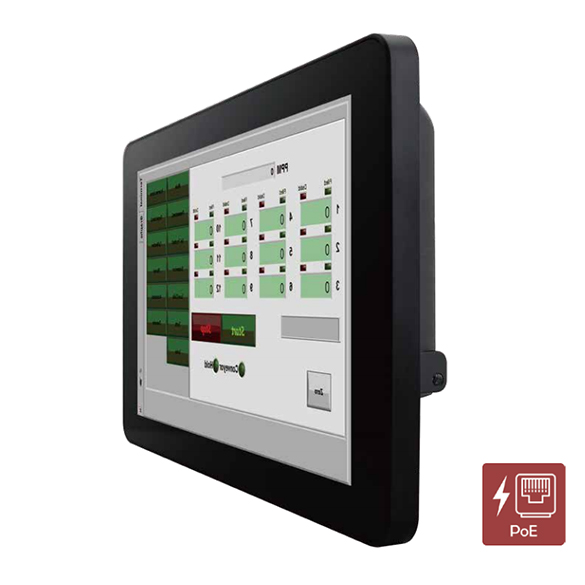

10.1" Projective Capacitive Multi-Touch monitor, 1280x800, 350 cd/m2, VGA+HDMI, PoE input, IP65 Front
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Aspect Ratio
16:9
Brightness
350 Cd/m2
Contrast Ratio
800~1
Input Interface
HDMI, VGA
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
LED
1xOn/Off LED
Controls
Control Buttons
Connectors
Connectors
DB15 VGA, HDMI, RJ45, 1xUSB
System Power Input
Input Voltage DC
12..12 V
Operating Conditions
Operating Temperature
0..50 °C
Dimensions and weight
Width
264.57 mm
Height
173.29 mm
Depth
35.7 mm
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
2 kg
