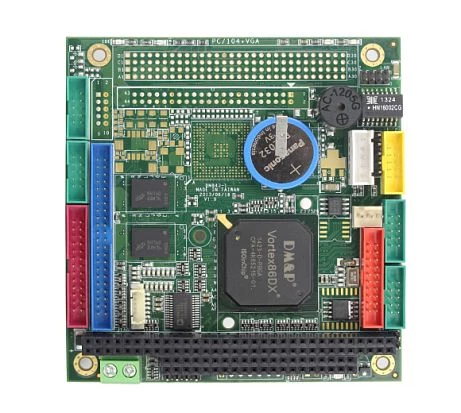

VDX-6350RDE-PLUS-1
ICOP
SKU: 05799700
PC/104+ Vortex86DX 800MHz CPU Module with 256MB RAM, LAN, 4xCOM, 2xUSB, GPIO, operating temp -20..70 C, socket battery
Price on request
Available on order
Available on order
System Architecture
Form Factor
PC/104-Plus
Construction
Type
Fanless
CPU
Processor Installed
Vortex86DX
Max CPU frequency
0.8 GHz
Chipset
Chipset
Vortex86 System-on-Chip
Memory
Form-factor
DDR2
Default on Board Memory
0.25 GB
Assembly
Fixed on Board
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
4
RS-232
3
RS-232/485
1
USB Total
2
USB 2.0
2
LPT
LPT
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
44-pin IDE, 26-pin LPT, 4x10-pin RS-232, 10-pin USB 2.0, 3-pin RS-485, 6-pin JTAG, 20-pin GPIO, 2-pin Reset, 5-pin KB, 5-pin MS, 2-pin DC-In Power, 8-pin Ethernet
Dimensions and weight
Width
96 mm
Length
90 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Gross Weight
0.42 kg
