V80J-Linux-M
ONERugged
SKU: 57812500

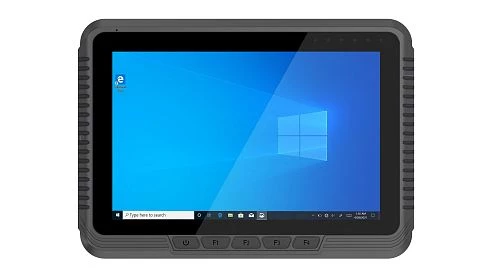

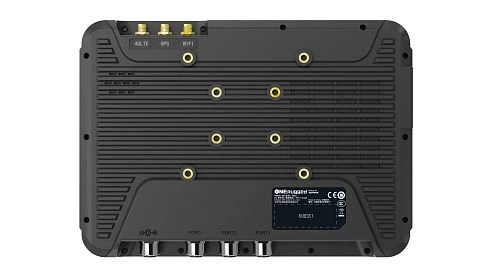

8" Vehicle Panel PC, Full IP65, PCAP Touch,1280x800, 1000 cd/m2, Intel Celeron N5100 CPU, 8GB LPDDR3 RAM, 128GB eMMC, 1xM12 GbE LAN, 1xUSB 3.0, 1xM12 (USB/CAN/CVBS), 1xM12 (RS232/RS485), SIM, Bat. Opt., WiFi/BT, GPS, Linux OS, 19VDC-in M12, -20..60C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD IPS
Diagonal
8 "
Maximum resolution
1280x800 Dots
Aspect Ratio
16:10
Brightness
1000 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Jasper Lake
Processor Installed
Intel Celeron N5100
Socket
CPU onboard
Max CPU frequency
2.8 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR3
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
2
RS-232
1
RS-485
1
USB Total
3
USB 2.0
2
USB v3.x
1
Industrial Interfaces
CAN Port
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
128 GB
Extension Slots
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
GPS
GPS, GLONASS
LED / Controls
LED
Power LED
Controls
On/Off, Function Keys
Connectors
Connectors
M12, M12 USB, USB type A, M12 DC-in, M12 LAN
System Power Input
Input Voltage DC
19..19 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Installed
Linux OS
Dimensions and weight
Width
218.1 mm
Height
154.5 mm
Depth
23 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.62 kg
Gross Weight
0.87 kg
