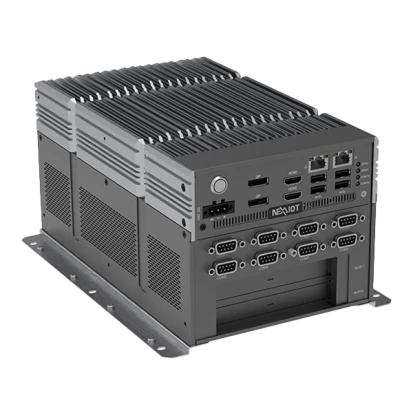

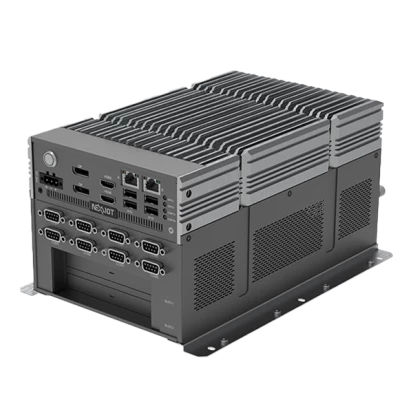

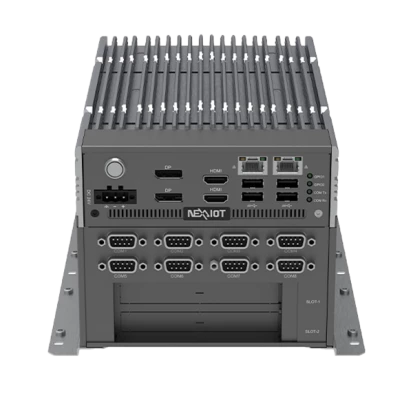

TT-300-AXQ--C
NEXCOM
SKU: 80083000
Fanless Embedded TT-300 System, Intel 12/13th Gen Core i7/i5/i3 CPU, 16GB DDR5 RAM, 256GB M.2 SSD, 2xHDMI, 2xDP, 4xUSB 3.0, 2xGbE LAN, 8x/4xCOM, 2x2.5" Bay, 1xMini-PCIe, 1xM.2 Key-B, 2xPCIe x4 or 1xPCIe x16 or w/o, 24VDC-in, 120W PSU, Win 11 IoT LTSC
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
16 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI, 2xDisplayPort
Ethernet
Controller Type
Intel i226V
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
8
RS-232
6
RS-232/422/485
2
USB Total
4
USB v3.x
4
Drive interfaces
SATA 3
2
M.2
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
Total
5
PCI Express x4
2
M.2
2
M.2 Form Factor
2280 M, 3052 B, 3042 B, 2242 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
COM-ports LED
Controls
On/Off
Connectors
Connectors
2xHDMI, 2xRJ45 Ethernet, 4xUSB, 2xDisplayPort, DC input (terminal block), 8xDB9
System Power Input
Input Voltage DC
24..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Operating System Installed
Windows IoT Enterprise 11
Dimensions and weight
Width
200.2 mm
Height
141.8 mm
Depth
270 mm
Operating Conditions
Operating Temperature
-5..55 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4, FCC Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
4.4 kg
Gross Weight
5.9 kg
Construction
Construction Chassis
