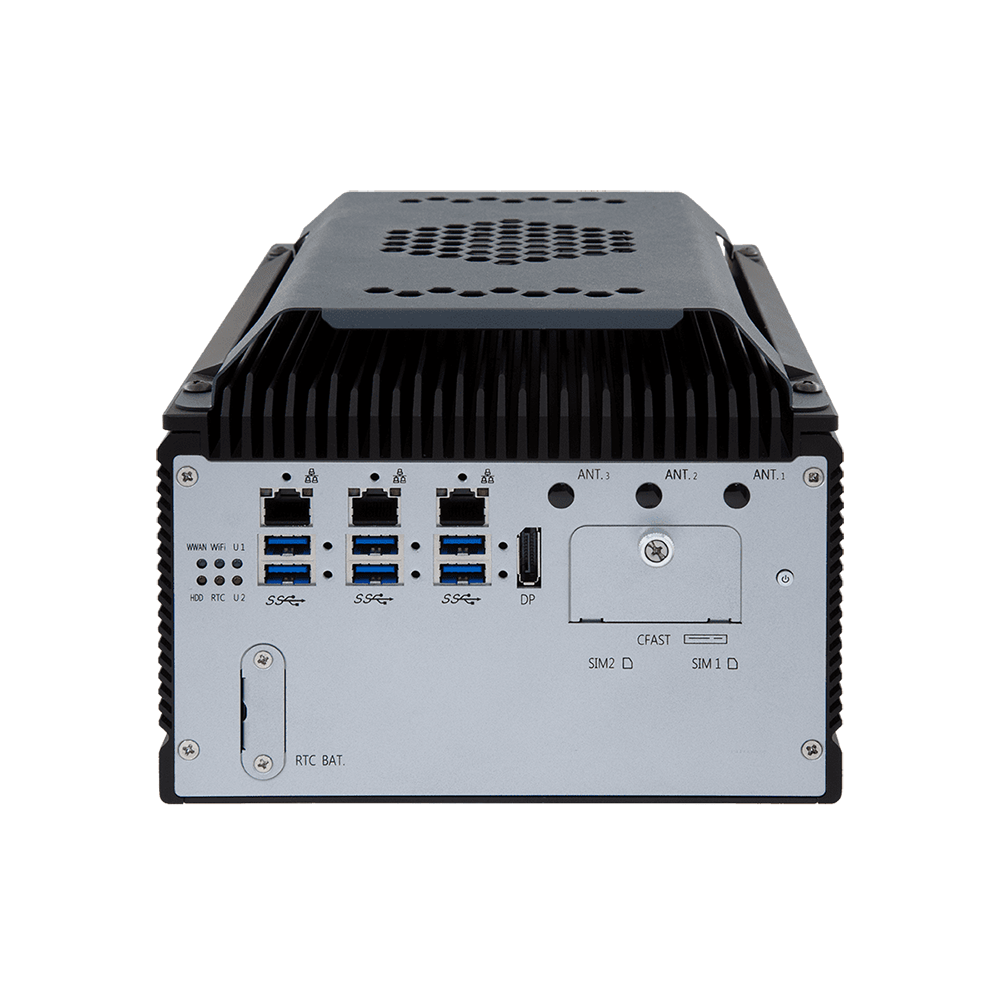

FPC-821X--C
Arbor
SKU: 80064800
Fanless FPC-821X Box-PC, Intel 12/13/14th Gen Core i3/i5/i7/i9 CPU, 16GB DDR4 RAM, 256GB M.2 SSD, DP/DVI-D/VGA, 3x2.5GbE LAN, 6xUSB 3.2, 4xCOM, DIO, CFast, MiniPCIe, 2x2.5" Bay, M.2 Key-E, 9-36V 120W PSU, PCIe x16 /PCI or PCIe x16 /PCIe x4 or 2xPCI
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Chipset
Chipset
Intel H610E
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
16 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Interfaces
DisplayPort, DVI-D, VGA
Ethernet
Controller Type
Intel i226V
Total Ethernet
3
2,5 Gbit/s
3
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
4
RS-232
4
USB Total
6
USB v3.x
6
Digital Input-Output
Channels of DIO
16
Drive interfaces
SATA 3
2
CFast Slots
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
5
PCI Express x16
1
PCI Express x8
1
M.2
2
M.2 Form Factor
2230 E, 3052 B, 2242 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 2
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, WWAN LED
Connectors
Connectors
4xDB9, DVI-D, DB15 VGA, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display Port, DC input (terminal block), 1xDB25 DIO, 2xSIM Card Slot, CFast slot
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Operating System Installed
Windows IoT Enterprise 11
Dimensions and weight
Width
268 mm
Height
195 mm
Depth
125 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4.2 kg
Gross Weight
4.8 kg
