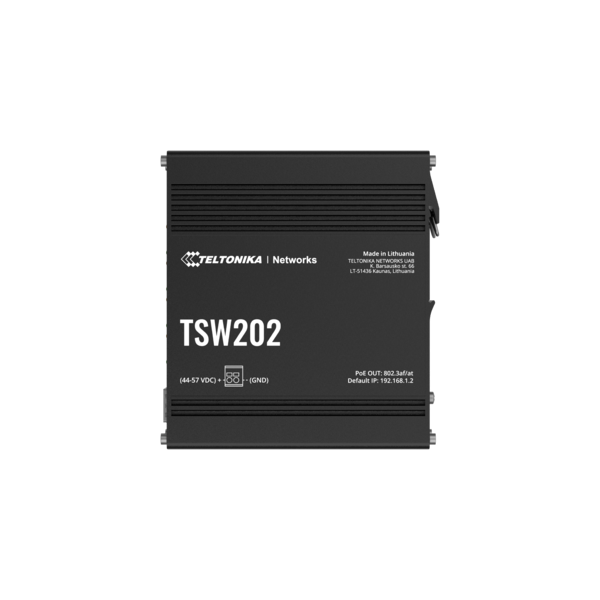

TSW202
Teltonika Networks
SKU: 80332000
Industrial Managed PoE+ Switch, IP30, 8x10/100/1000Mbps with PoE+, 2xSFP, 7..57 VDC-in, Operating temperature -40..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
8
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
10 kB
Supported Protocols
Industrial Protocols
EtherNet/IP, PROFINET
Protocol Layer 3
RIP V1/V2, OSPF, BGP
Managment Protocols
SNMPv1/v2c/v3, LLDP, QoS, DHCP, IGMP, LACP
Reservation protocols
STP, RSTP
Security Protocols
RADIUS, TACACS+
IEEE Standard
ieee_802.3i, IEEE 802.1P for Class of Service, IEEE 802.1X for Authentication, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
7..57 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
132 mm
Depth
44.2 mm
Height
122.2 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC, rohs
EMI
EN 61000-3-2, EN 61000-3-3
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11, EN 55032, EN 55035
Safety
IEC 62368-1
Dimensions
Net Weight
0.6 kg
Gross Weight
1.1 kg
