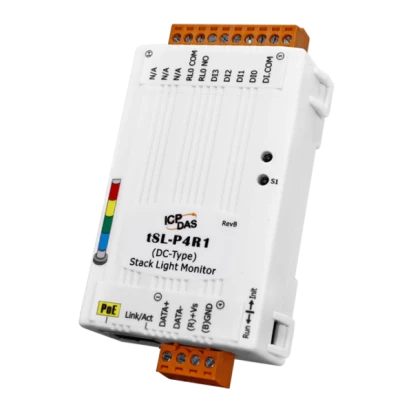

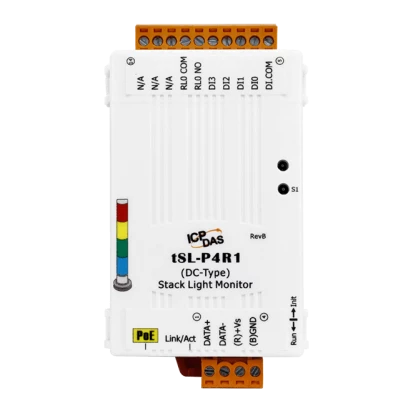

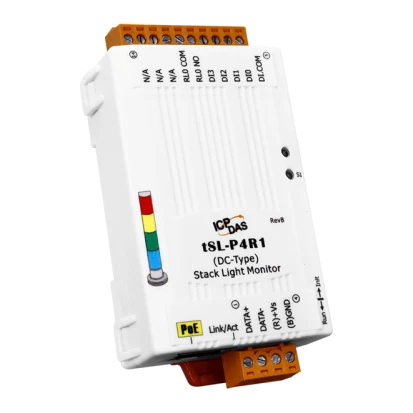

tSL-P4R1
ICP DAS
SKU: 07683400
Single Stack Light Monitoring Module with Ethernet/RS-485 Interface and PoE for DC Stack Lights. (4 DC DI + 1 Relay) (RoHS)
Price on request
Available
Available
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
1
RS-485
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus RTU slave, MQTT client
Digital Input
Total channels of digital input
4
Digital Output
Total channels of digital output
1
LED / Controls
LED
Power LED, PoE LED, LNK/ACT LED
System Power Input
Input Voltage DC
10..48 V
Power over Ethernet (PoE)
IEEE 802.3af, PoE
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
98 mm
Connectors
Connectors
RJ45 Ethernet, Screw Terminal, Terminal block
Standards and Certifications
Certifications
CE/FCC
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.4 kg
Gross Weight
0.5 kg
