tSH-724i
ICP DAS
SKU: 08328400

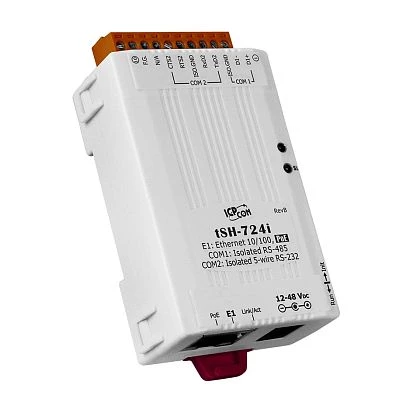

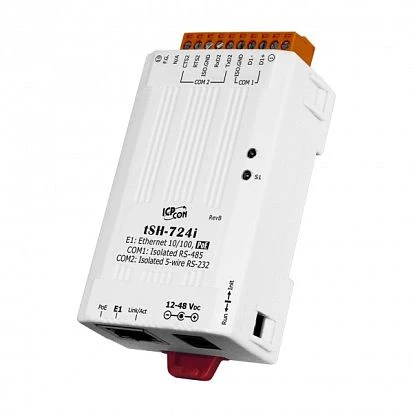

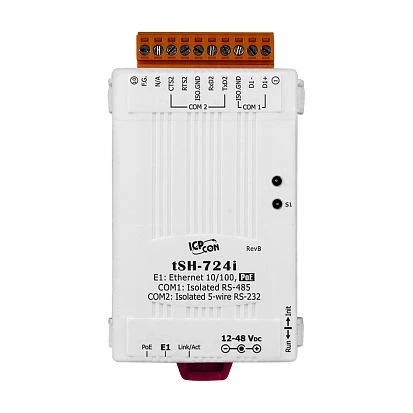

Tiny Serial Port Converter with PoE and 1 Isolated RS-232 and 1 Isolated 485 Ports (RoHS)
Price on request
Available
Available
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
RJ-45
Interfaces
COM Total
2
RS-232
1
RS-485
1
Isolation of COM Ports
3 kV (RS-232), 3 kV (RS-485)
LED / Controls
Setup of Operation Mode
Web-interface
Connectors
Connectors
Terminal block
Cables
Included Cables
Кабель питания CA-002
System Power Input
Input Voltage DC
12..48 V
Power over Ethernet (PoE)
IEEE 802.3af, PoE
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
95 mm
Dimensions
Net Weight
0.16 kg
Gross Weight
0.3 kg
