TPM-4100
ICP DAS
SKU: 06008500

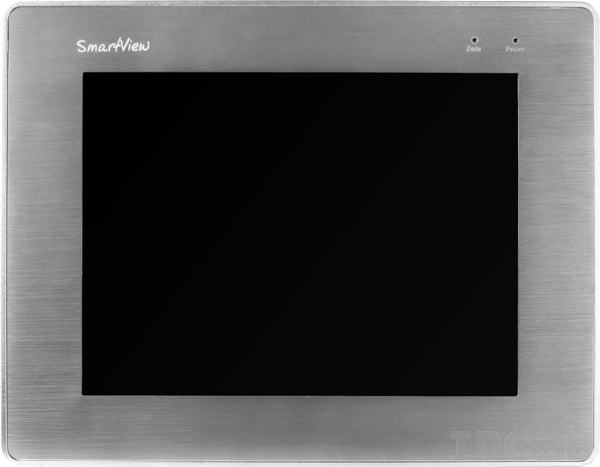

10.4" (800 x 600) resistive touch panel monitor with RS-232 or USB interface Accessories: VGA cable, RS-232 cable, USB cable, Mounting clamps and screws, Aluminum Casing
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
800x600 Dots
Brightness
400 Cd/m2
Contrast Ratio
500~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Resistive
Interface
RS-232, USB
System Power Input
Input Voltage DC
12..48 V
Power Consumption
8.5 W
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions and weight
Width
293 mm
Height
231 mm
Depth
53 mm
Dimensions
Gross Weight
4.22 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
800x600 Dots
Brightness
400 Cd/m2
Contrast Ratio
500~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Resistive
Interface
RS-232, USB
System Power Input
Input Voltage DC
12..48 V
Power Consumption
8.5 W
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions and weight
Width
293 mm
Height
231 mm
Depth
53 mm
Dimensions
Gross Weight
4.22 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
800x600 Dots
Brightness
400 Cd/m2
Contrast Ratio
500~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Resistive
Interface
RS-232, USB
System Power Input
Input Voltage DC
12..48 V
Power Consumption
8.5 W
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions and weight
Width
293 mm
Height
231 mm
Depth
53 mm
Dimensions
Gross Weight
4.22 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
800x600 Dots
Brightness
400 Cd/m2
Contrast Ratio
500~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Resistive
Interface
RS-232, USB
System Power Input
Input Voltage DC
12..48 V
Power Consumption
8.5 W
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions and weight
Width
293 mm
Height
231 mm
Depth
53 mm
Dimensions
Gross Weight
4.22 kg
Documentation
Documentation
Documentation
Documentation
