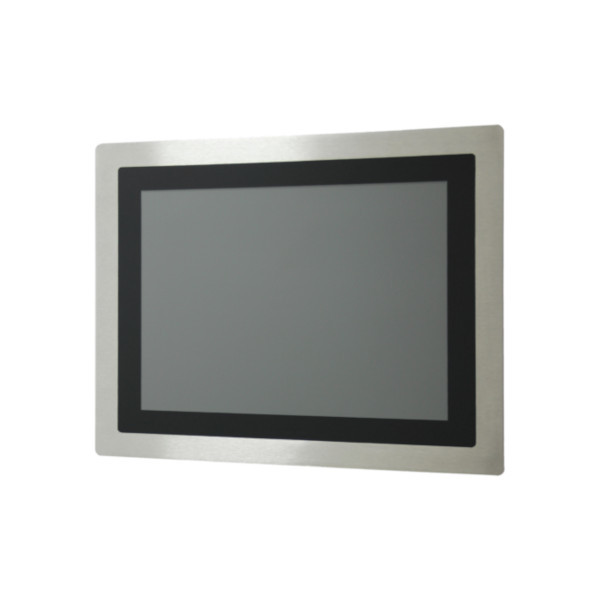

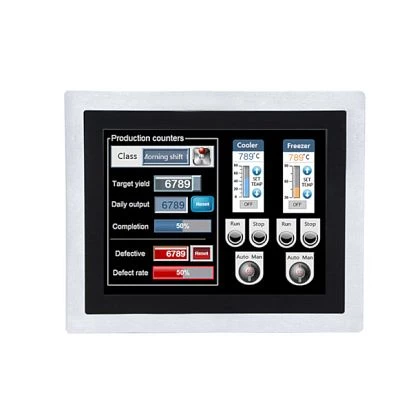

TPM-3317P-A1
Arestech
SKU: 57004900
17" Touch Monitor, 1280x1024, 350 d/m2, IP65 Stainless Steel Flat Panel, Projected capacitive touch screen, USB interface, 1xVGA, 12..24V DC-In, Phoenix Connector
Price on request
Available
Available
Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Material Front Side (Panel)
Stainless Steel Front Panel
Display
Display Type
LCD
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
Controls
Control Buttons
Connectors
Connectors
DB15 VGA
System Power Input
Input Voltage DC
12..24 V
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Dimensions and weight
Width
411.4 mm
Height
337.5 mm
Depth
54.5 mm
Dimensions
Net Weight
6.15 kg
Gross Weight
9.51 kg
