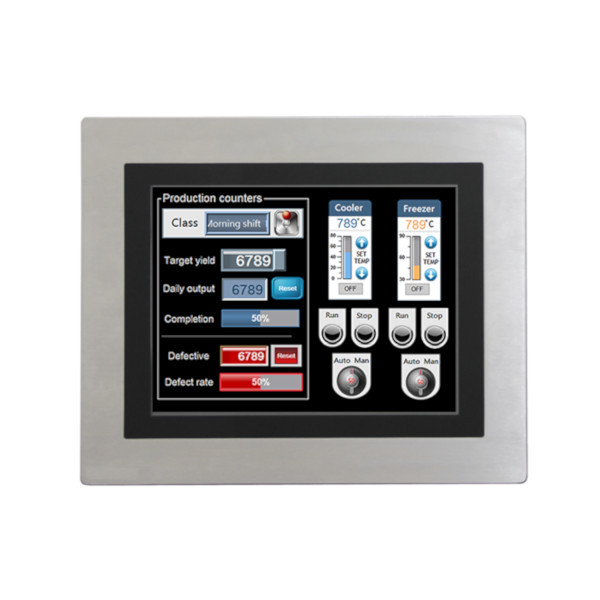

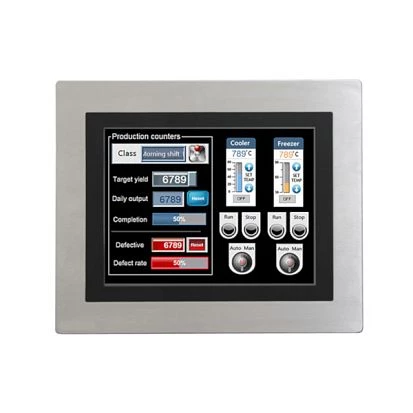

TPM-3312R-B6A1
Arestech
SKU: 57304100
12" 4:3 (1024 x 768), 450 cd/m2, Stainless Steel 316 IP65 Front Panel, 5-wire Resistive Touch, USB Interface, 1x VGA, 1x DVI, 12..24V DC-In, Phoenix connector
Price on request
Available
Available
Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Material Front Side (Panel)
Stainless Steel Front Panel
Display
Display Type
LCD
Diagonal
12.1 "
Maximum resolution
1024x768 Dots
Brightness
450 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Resistive
Interface
USB
LED / Controls
Controls
Control Buttons
Connectors
Connectors
DVI, DB15 VGA
System Power Input
Input Voltage DC
12..24 V
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Dimensions and weight
Width
359.3 mm
Height
297.3 mm
Depth
48.02 mm
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4 kg
Gross Weight
7 kg
