TPM-3217P-A2
Arestech
SKU: 57002400

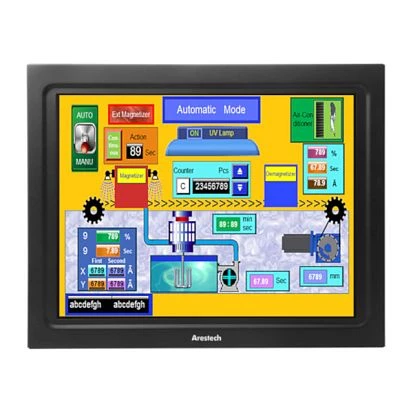

17" Industrial LCD Monitor, 1280 x 1024, 4:3, 250 cd/m2, IP54 front panel, Projected capacitive touch screen, USB interface, 1xVGA, 12..24V DC-In
Price on request
Available
Available
Construction
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Chassis
IP54
Display
Display Type
LCD
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
Controls
Control Buttons
Connectors
Connectors
DB15 VGA
System Power Input
Input Voltage DC
12..24 V
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Dimensions and weight
Width
411.4 mm
Height
337.5 mm
Depth
41.6 mm
Dimensions
Net Weight
5.1 kg
Gross Weight
6.77 kg
