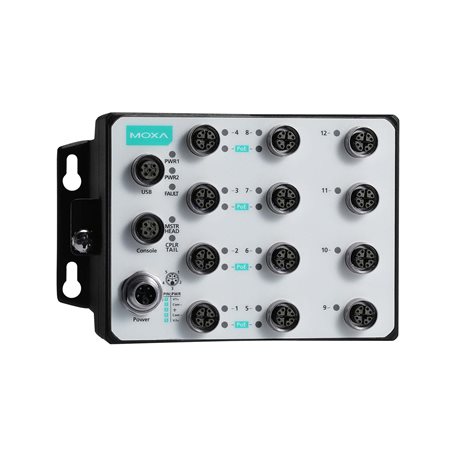

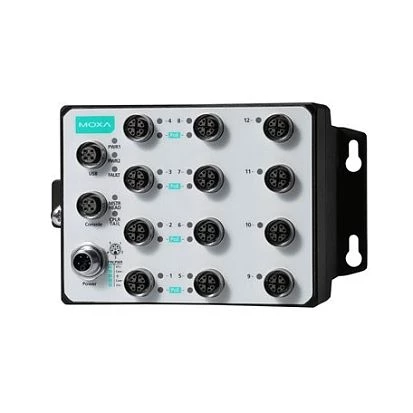

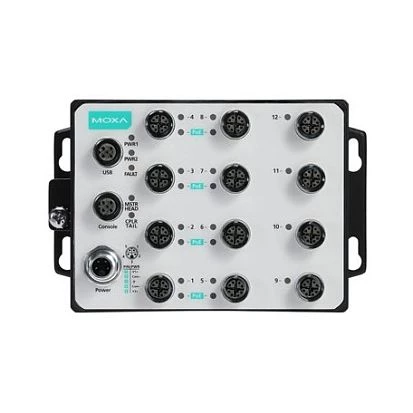

TN-G6512-8GPoE-WV-T

TN-G6512-8GPoE-WV-T

MOXA
SKU: 08381000
L2 Managed Ethernet switch, 8 * 10/100/1000BaseT(X) with 802.3at PoE+ and 4 * 10/100/1000 BaseT(X) M12 connectors, power input 24 - 110 VDC, -40 to 70C operation temperature
Price on request
Available
Available

Ethernet
Total Ethernet
12
10/100/1000 Mbit/s
12
Type 10/100/1000 Mbit/s
12xM12
PoE+ 10/100/1000 Mbit/s
8
Power Budget
96 W
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported technologies
Dynamic Ring Coupling (DRC)
Max. Number of VLANs
256
Priority Queues
4
IGMP Groups
256
Supported Protocols
Industrial Protocols
EtherNet/IP, Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, QoS, SNTP, GVRP, RMON, CoS, IGMPv1/v2, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, Turbo Ring with DRC, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
System Power Input
Redundant power input
Yes
Input Voltage DC
16..137 V
Power Supply Reserve input Voltage DC
16..137 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP67
Dimensions and weight
Width
159 mm
Depth
97 mm
Height
100 mm
Operating Conditions
Operating Temperature
-40..70 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Rolling Stock
EN 50121-4, EN 50155, IEC 60571, EN 45545-2
Safety
IEC 60950-1, UL 61010-2-201
Freefall
IEC 60068-2-31
Vibration And Shock
IEC 60068-2-27, IEC 61373
Dimensions
Net Weight
2.55 kg
Gross Weight
3 kg
Ethernet
Total Ethernet
12
10/100/1000 Mbit/s
12
Type 10/100/1000 Mbit/s
12xM12
PoE+ 10/100/1000 Mbit/s
8
Power Budget
96 W
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported technologies
Dynamic Ring Coupling (DRC)
Max. Number of VLANs
256
Priority Queues
4
IGMP Groups
256
Supported Protocols
Industrial Protocols
EtherNet/IP, Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, QoS, SNTP, GVRP, RMON, CoS, IGMPv1/v2, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, Turbo Ring with DRC, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
System Power Input
Redundant power input
Yes
Input Voltage DC
16..137 V
Power Supply Reserve input Voltage DC
16..137 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP67
Dimensions and weight
Width
159 mm
Depth
97 mm
Height
100 mm
Operating Conditions
Operating Temperature
-40..70 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Rolling Stock
EN 50121-4, EN 50155, IEC 60571, EN 45545-2
Safety
IEC 60950-1, UL 61010-2-201
Freefall
IEC 60068-2-31
Vibration And Shock
IEC 60068-2-27, IEC 61373
Dimensions
Net Weight
2.55 kg
Gross Weight
3 kg
Ethernet
Total Ethernet
12
10/100/1000 Mbit/s
12
Type 10/100/1000 Mbit/s
12xM12
PoE+ 10/100/1000 Mbit/s
8
Power Budget
96 W
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported technologies
Dynamic Ring Coupling (DRC)
Max. Number of VLANs
256
Priority Queues
4
IGMP Groups
256
Supported Protocols
Industrial Protocols
EtherNet/IP, Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, QoS, SNTP, GVRP, RMON, CoS, IGMPv1/v2, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, Turbo Ring with DRC, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
System Power Input
Redundant power input
Yes
Input Voltage DC
16..137 V
Power Supply Reserve input Voltage DC
16..137 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP67
Dimensions and weight
Width
159 mm
Depth
97 mm
Height
100 mm
Operating Conditions
Operating Temperature
-40..70 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Rolling Stock
EN 50121-4, EN 50155, IEC 60571, EN 45545-2
Safety
IEC 60950-1, UL 61010-2-201
Freefall
IEC 60068-2-31
Vibration And Shock
IEC 60068-2-27, IEC 61373
Dimensions
Net Weight
2.55 kg
Gross Weight
3 kg
Ethernet
Total Ethernet
12
10/100/1000 Mbit/s
12
Type 10/100/1000 Mbit/s
12xM12
PoE+ 10/100/1000 Mbit/s
8
Power Budget
96 W
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported technologies
Dynamic Ring Coupling (DRC)
Max. Number of VLANs
256
Priority Queues
4
IGMP Groups
256
Supported Protocols
Industrial Protocols
EtherNet/IP, Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, QoS, SNTP, GVRP, RMON, CoS, IGMPv1/v2, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, Turbo Ring with DRC, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
System Power Input
Redundant power input
Yes
Input Voltage DC
16..137 V
Power Supply Reserve input Voltage DC
16..137 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP67
Dimensions and weight
Width
159 mm
Depth
97 mm
Height
100 mm
Operating Conditions
Operating Temperature
-40..70 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Rolling Stock
EN 50121-4, EN 50155, IEC 60571, EN 45545-2
Safety
IEC 60950-1, UL 61010-2-201
Freefall
IEC 60068-2-31
Vibration And Shock
IEC 60068-2-27, IEC 61373
Dimensions
Net Weight
2.55 kg
Gross Weight
3 kg

Documentation
TN-G6500 Datasheet TN_Series_Communication_Redundancy_Users_Manual_1e TN_Series_Command_Line_Interface_1e TN_Series_Industrial_Protocols_Users_Guide_1e TN-G6500 QIG TN-G Series Manual
Documentation
TN-G6500 Datasheet TN_Series_Communication_Redundancy_Users_Manual_1e TN_Series_Command_Line_Interface_1e TN_Series_Industrial_Protocols_Users_Guide_1e TN-G6500 QIG TN-G Series Manual
Documentation
TN-G6500 Datasheet TN_Series_Communication_Redundancy_Users_Manual_1e TN_Series_Command_Line_Interface_1e TN_Series_Industrial_Protocols_Users_Guide_1e TN-G6500 QIG TN-G Series Manual
Documentation
TN-G6500 Datasheet TN_Series_Communication_Redundancy_Users_Manual_1e TN_Series_Command_Line_Interface_1e TN_Series_Industrial_Protocols_Users_Guide_1e TN-G6500 QIG TN-G Series Manual
