TDM-P104ST
ELGENS
SKU: 09017900

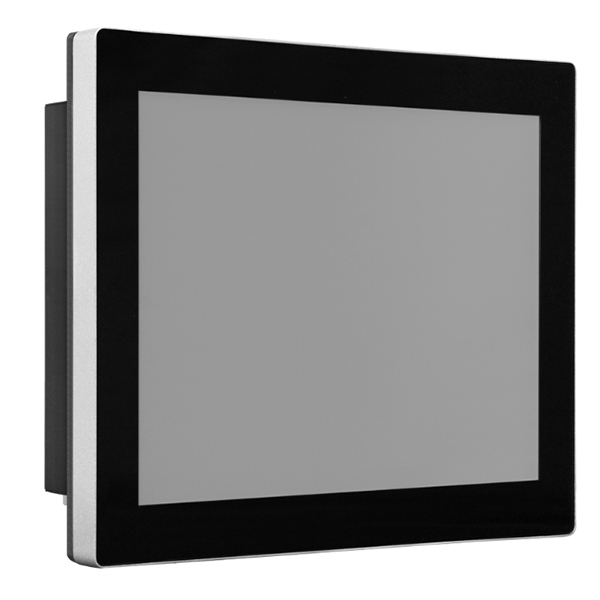

10.4" Bezel-Free P-cap Monitor, IP65 Aluminum Front Bezel, VGA/DP/HDMI, 1024*768, 350nits, -40...80C, 9...36VDC-in, IEC-60945 compliance, power adapter
1 051,34 €
Price excl. VAT and shipping cost
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65, IP66
Material Front Side (Panel)
Epoxyd glass resin
Display
Display Type
LCD
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Brightness
500 Cd/m2
Contrast Ratio
3000~1
Input Interface
HDMI, VGA, DVI-I
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
LED
1xOn/Off LED
Controls
On/Off
Connectors
Connectors
DVI-I, DB15 VGA, HDMI, DC input (terminal block), USB type A
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
-40..80 °C
Dimensions and weight
Width
255.1 mm
Height
172.6 mm
Depth
54 mm
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
5 kg
Gross Weight
7.4 kg
