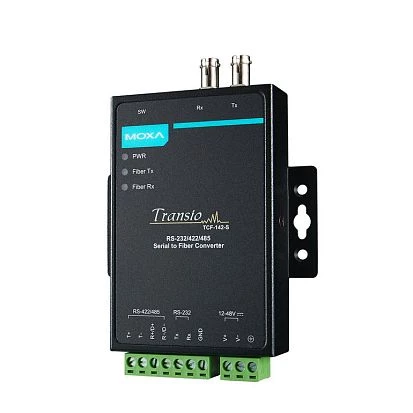

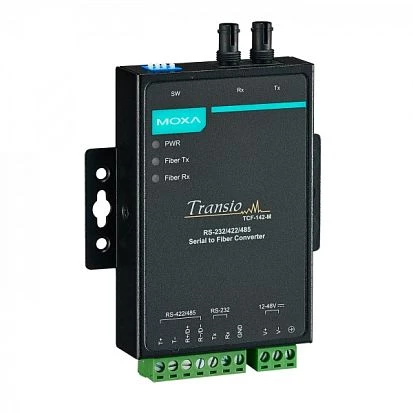

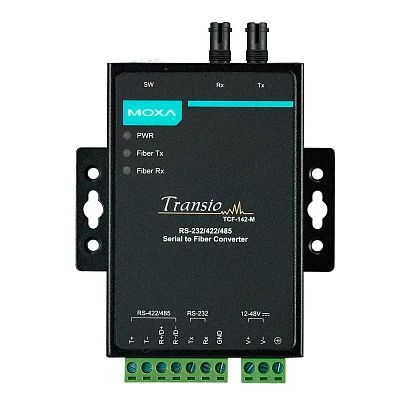

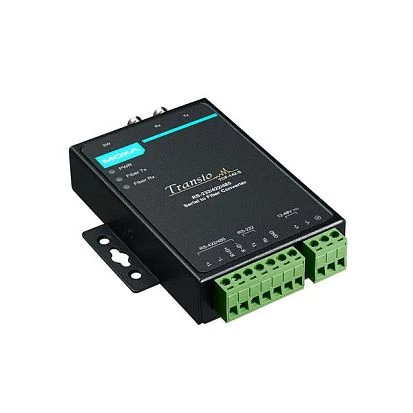

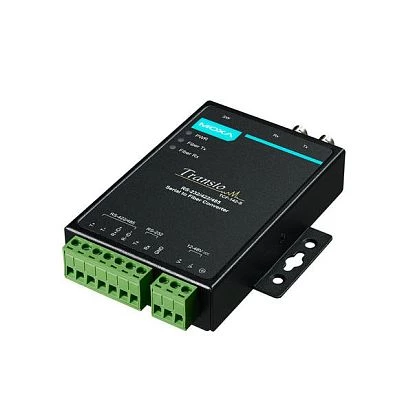

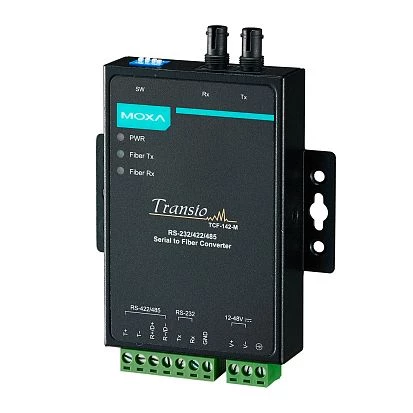

TCF-142-M-ST

TCF-142-M-ST

MOXA
SKU: 02326900
RS-232/422/485 to ST Fiber Converter, multi mode, up to 5 Km, fiber ring
Price on request
Available
Available

Mounting Kit
Price with VAT
Price on request
Mounting Kit
Price with VAT
Price on request

Fiber
Number of Optical Ports
1xST
Type of Fibre Optic
multi-mode
Interfaces
COM Total
1
RS-232/422/485
1
Switch Properties
Supported functions
Ring Operation, Automatic Data Direction Control (ADDC®), Automatic Baudrate Detection
LED / Controls
LED
Power LED, TX LED, RX LED
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
67 mm
Depth
22 mm
Height
100 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
FCC Part 15 Subpart B Class B, CISPR 32
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 55032
Safety
UL 60950-1
Dimensions
Net Weight
0.32 kg
Gross Weight
0.32 kg
