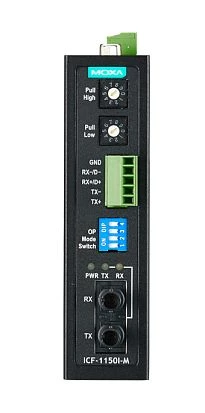

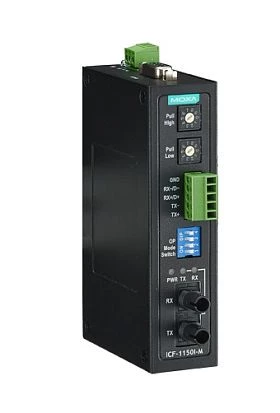

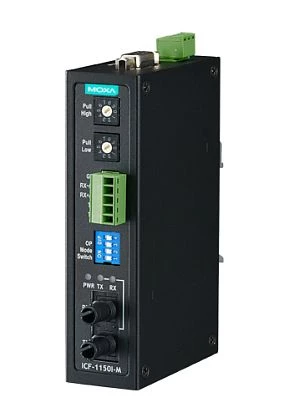

ICF-1150-M-ST-IEX
MOXA
SKU: 66370600
Industrial RS-232/422/485 to Fiber Optic Converter, ST Multi-mode, IECEx Certification Approval, 0 to 60C operating temperature
Price on request
Available on order
Available on order
Fiber
Number of Optical Ports
1xST
Type of Fibre Optic
multi-mode
Interfaces
COM Total
2
RS-232
1
RS-422/485
1
Switch Properties
Supported functions
Ring Operation, Automatic Data Direction Control (ADDC®), Automatic Baudrate Detection, 3-way communication: RS-232, fiber, and RS-422/485
LED / Controls
LED
Power LED, TX LED, RX LED
Setup of Operation Mode
By Switches
Connectors
Connectors
DC input (terminal block)
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
30.3 mm
Depth
70 mm
Height
115 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Explosion safety
IECEx
Freefall
IEC 60068-2-32
Oil And Gas
ATEX Zone 2 Ex nC IIC, UL/cUL Class I Division 2 Groups A/B/C/D
Safety
UL 508, EN 62368
Dimensions
Gross Weight
0.36 kg
Fiber
Number of Optical Ports
1xST
Type of Fibre Optic
multi-mode
Interfaces
COM Total
2
RS-232
1
RS-422/485
1
Switch Properties
Supported functions
Ring Operation, Automatic Data Direction Control (ADDC®), Automatic Baudrate Detection, 3-way communication: RS-232, fiber, and RS-422/485
LED / Controls
LED
Power LED, TX LED, RX LED
Setup of Operation Mode
By Switches
Connectors
Connectors
DC input (terminal block)
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
30.3 mm
Depth
70 mm
Height
115 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Explosion safety
IECEx
Freefall
IEC 60068-2-32
Oil And Gas
ATEX Zone 2 Ex nC IIC, UL/cUL Class I Division 2 Groups A/B/C/D
Safety
UL 508, EN 62368
Dimensions
Gross Weight
0.36 kg
Fiber
Number of Optical Ports
1xST
Type of Fibre Optic
multi-mode
Interfaces
COM Total
2
RS-232
1
RS-422/485
1
Switch Properties
Supported functions
Ring Operation, Automatic Data Direction Control (ADDC®), Automatic Baudrate Detection, 3-way communication: RS-232, fiber, and RS-422/485
LED / Controls
LED
Power LED, TX LED, RX LED
Setup of Operation Mode
By Switches
Connectors
Connectors
DC input (terminal block)
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
30.3 mm
Depth
70 mm
Height
115 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Explosion safety
IECEx
Freefall
IEC 60068-2-32
Oil And Gas
ATEX Zone 2 Ex nC IIC, UL/cUL Class I Division 2 Groups A/B/C/D
Safety
UL 508, EN 62368
Dimensions
Gross Weight
0.36 kg
Fiber
Number of Optical Ports
1xST
Type of Fibre Optic
multi-mode
Interfaces
COM Total
2
RS-232
1
RS-422/485
1
Switch Properties
Supported functions
Ring Operation, Automatic Data Direction Control (ADDC®), Automatic Baudrate Detection, 3-way communication: RS-232, fiber, and RS-422/485
LED / Controls
LED
Power LED, TX LED, RX LED
Setup of Operation Mode
By Switches
Connectors
Connectors
DC input (terminal block)
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
30.3 mm
Depth
70 mm
Height
115 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Explosion safety
IECEx
Freefall
IEC 60068-2-32
Oil And Gas
ATEX Zone 2 Ex nC IIC, UL/cUL Class I Division 2 Groups A/B/C/D
Safety
UL 508, EN 62368
Dimensions
Gross Weight
0.36 kg
