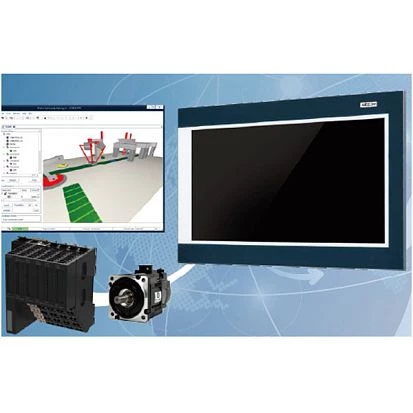

SoftMotion-Web-HMI-Starter-Kit
NEXCOM
SKU: 56189500
Tutorial package ready to use Application, 1x IPPC-1640P Panel PC, CODESYS and JMobile Software, Windows Embedded Standard 7, 1x EtherCAT Coupler, 1x 8ch DI module, 1x 8ch DO module, 1x Power supply, Quick Start Guide
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1366x768 Dots
CPU
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Default on Board Memory
4 GB
Drive interfaces
CFast Slots
1
Software
Operating System Installed
Windows Embedded Standard 7
Programming Method
IEC 61131-3
Development Software
CoDeSys
Digital Input
Total channels of digital input
8
Digital Output
Total channels of digital output
8
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
3
Wi-Fi
Wi-Fi Standard
Yes
Antenna characteristics
Cellular interfaces
3G
Additional Functions
Watchdog timer type
Software
Supported Protocols
Industrial Protocols
EtherCAT, EtherCAT master, EtherNet/IP scanner, PROFINET master, Profibus master
Connectors
Connectors
2xDB9, DB15 VGA, 2xRJ45 Ethernet, 3xUSB, DC input (terminal block)
Dimensions and weight
Width
417.4 mm
Depth
63.75 mm
Height
312.4 mm
System Power Input
Input Voltage DC
12..30 V
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4, FCC Class A
Dimensions
Net Weight
10 kg
Gross Weight
11 kg
